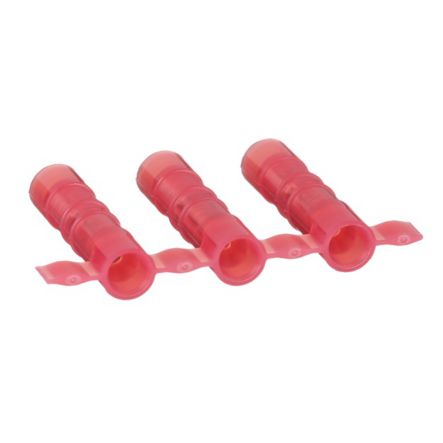

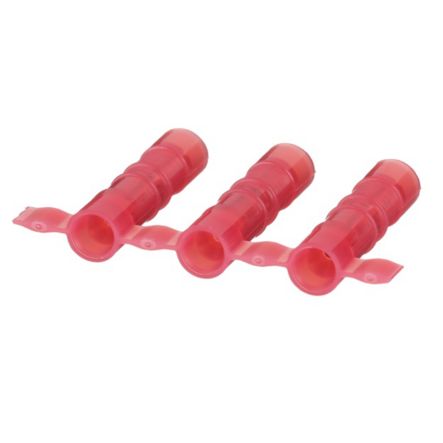

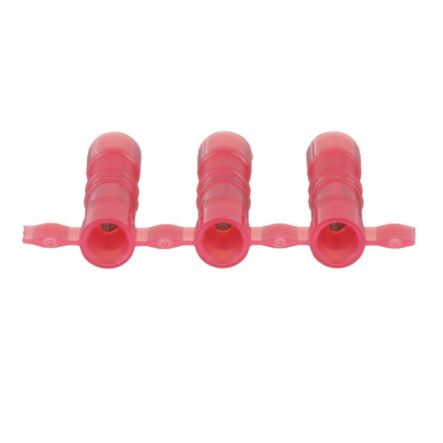

Panduit BSN18-3K | Pan-Term BSN18-3K Butt Splice, Red, Nylon, 16-22 AWG, PK3000

Panduit BSN18-3K Nylon Insulated Butt Splice

Panduit - BSN18-3K - Features

• Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
• Designed to splice two solid or stranded wires together to repair or lengthen wires
• Butted configuration provides low profile for limited space applications
• Brazed seam protects terminal barrel from splitting during the crimp process
• Internal wire stop assures proper length of insertion into terminal barrel
• Premium grade nylon insulation available for applications requiring a tighter grip around the wire insulation for maximum strain relief

Panduit - BSN18-3K - Product Categories

• Wire Termination
• Splices

Panduit - BSN18-3K - Specifications

Brand Name	Panduit
Manufacturer Part Number	BSN18-3K
Item Description	Pan-Term BSN18-3K Butt Splice, Red, Nylon, 16-22 AWG, PK3000
Product Type	Butt Splice
Maximum Copper Conductor Size (AWG SOL)	#18
Maximum Copper Conductor Size (AWG STR)	#18
Minimum Copper Conductor Size (AWG SOL)	#22
Minimum Copper Conductor Size (AWG STR)	#22
Maximum Metric Conductor Size (mm²)	1
Minimum Metric Conductor Size (mm²)	0.5
Sub Brand	Pan-Term
Copper Conductor Size (AWG)	#22 - #16
Barrel Type	Funnel Entry
Maximum Voltage (V)	600
Maximum Voltage (kV)	0.6
Base Material	Copper
Insulation Material	Nylon
Standards Met	BSN18-3K
Finish/Coating	Tin-Plated
Color Code	Red
Overall Length (In.)	0.95
Overall Length (mm)	24.1
Overall Width (In.)	0.22
Overall Width (mm)	5.5
Wire Strip Length (In.)	5/16
Wire Strip Length (mm)	7.9
UL Temperature Rating (°C)	105
UL Temperature Rating (°F)	221
CSA Temperature Rating (°C)	105
CSA Temperature Rating (°F)	221
Part Features	• Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Designed to splice two solid or stranded wires together to repair or lengthen wires • Butted configuration provides low profile for limited space applications • Internal wire stop assures proper length of insertion into terminal barrel

Panduit - BSN18-3K - Package Information

UPC	07498383016
Standard Package Quantity	3000
Standard Package Volume (cf)	0.9208
Standard Ctn. Quantity	0
Standard Ctn. Volume (cf)	0.0000
