Brand: Panduit
|
SKU:
207714

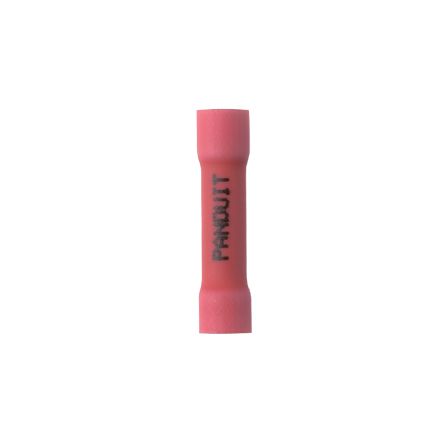

Panduit BSV18X-LY Butt Splice, Vinyl Insulated, 22-18 AWG, Individual
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BSV18X-LY Butt Splice, Vinyl Insulated, 22-18 AWG, Individual
Regular price
$1.46
Unit price
Description
Description
Panduit BSV18X-LY | Pan-Term BSV18X-LY Butt Splice, Red, Vinyl, 18-22 AWG, PK50
Panduit BSV18X-LY Vinyl Insulated Butt Splice
Panduit - BSV18X-LY - Features
- Butt Splice, 22 - 18 AWG, vinyl insulated.
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal wire stop assures proper length of insertion into terminal barrel
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - BSV18X-LY - Product Categories
- Wire Termination
- Splices
Panduit - BSV18X-LY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BSV18X-LY |
| Item Description | Pan-Term BSV18X-LY Butt Splice, Red, Vinyl, 18-22 AWG, PK50 |
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #22 - #18 |
| Barrel Type | Funnel Entry |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Vinyl |
| Standards Met | BSV18X-LY |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Overall Length (In.) | 1.03 |
| Overall Length (mm) | 26.16 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Part Features | • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Designed to splice two solid or stranded wires together to repair or lengthen wires • Internal wire stop assures proper length of insertion into terminal barrel |
Panduit - BSV18X-LY - Package Information
| UPC | 07498368553 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0064 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.0641 |
Panduit - BSV18X-LY - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
