Description
Description
Panduit BT1M-M | Dome-Top Bt1M-M Barb Tie, Pa6.6, 4"L, 18Lb, Pk1000

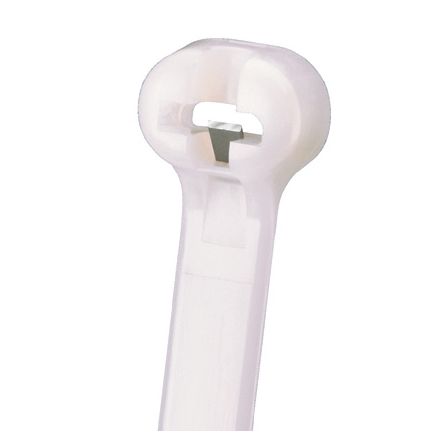

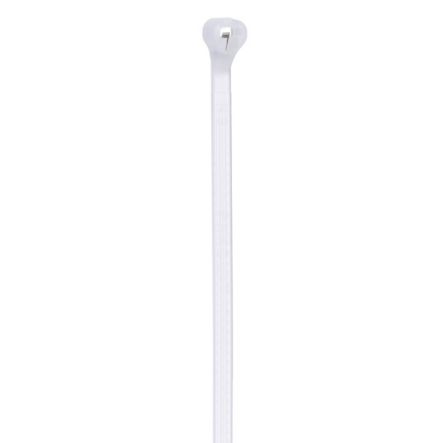

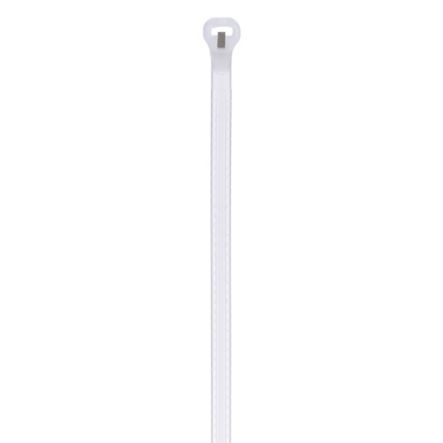

The BT1M-M Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Miniature cross section, 4.0" (102mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit - BT1M-M - Features
- For indoor use
- Dome-top head features unique patented design with round, smooth edges
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- High strength and low thread forceÃ"urved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)
Specifications
Specifications
Panduit - BT1M-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - BT1M-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT1M-M |
| Item Description | Dome-Top Bt1M-M Barb Tie, Pa6.6, 4"L, 18Lb, Pk1000 |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 102 |
| Body Width (In.) | 0.095 |
| Body Width (mm) | 2.4 |
| Body Thickness (In.) | 0.036 |
| Body Thickness (mm) | 0.9 |
| Maximum Bundle Diameter (In.) | 0.9 |
| Maximum Bundle Diameter (mm) | 23 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant |
| Military Cross Reference Number | MS3367-4-9 |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
Panduit - BT1M-M - Package Information
| UPC | 07498341317 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0627 |
| Standard Ctn. Quantity | 50000 |
| Standard Ctn. Volume (cf) | 3.1343 |
