Panduit BT3I-C | Dome-Top BT3I-C Barb Tie, PA6.6, 11.3"L, 40lb...
Description
Description

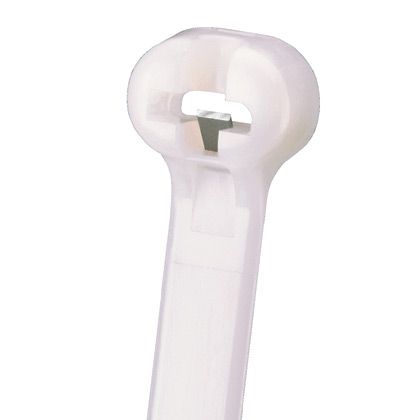

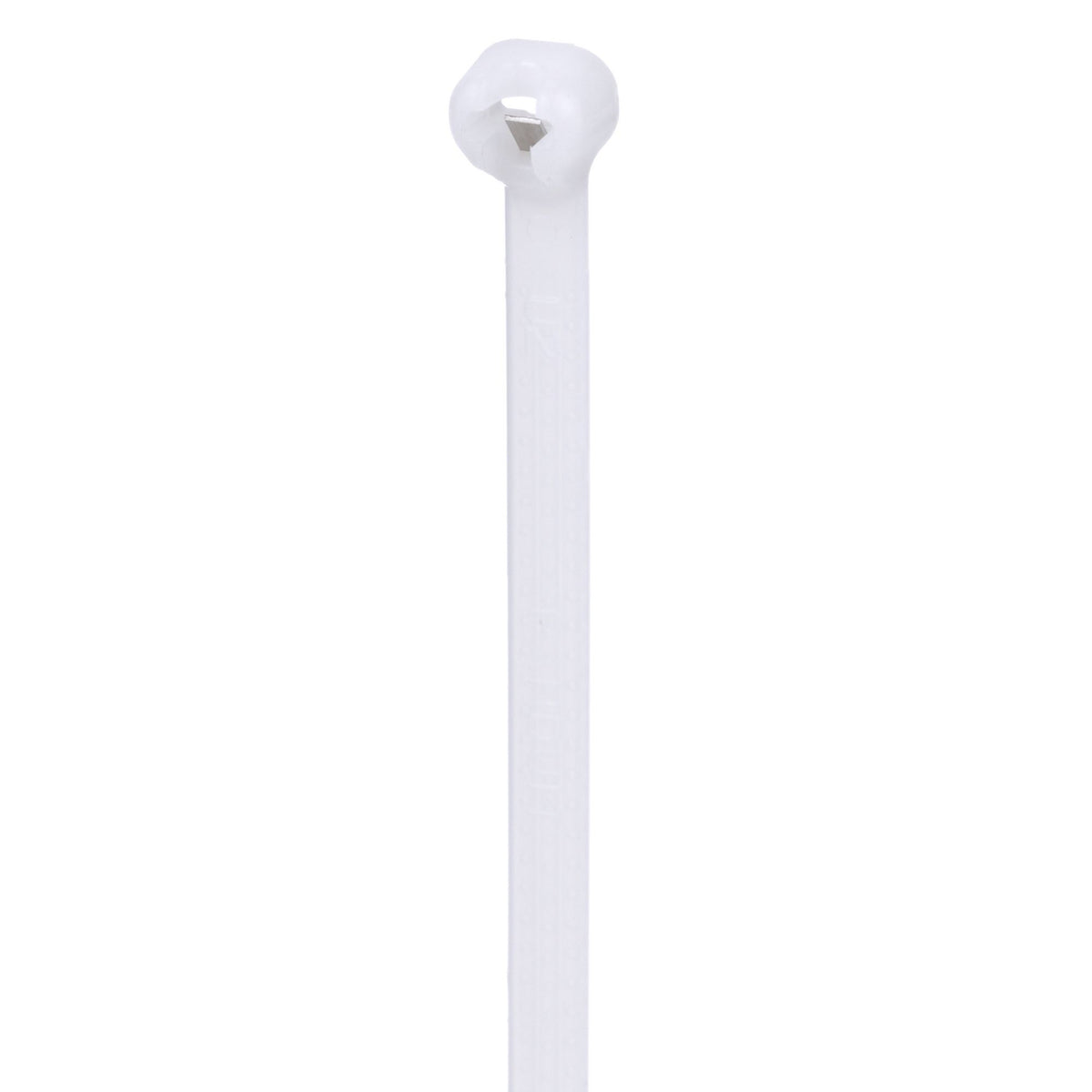

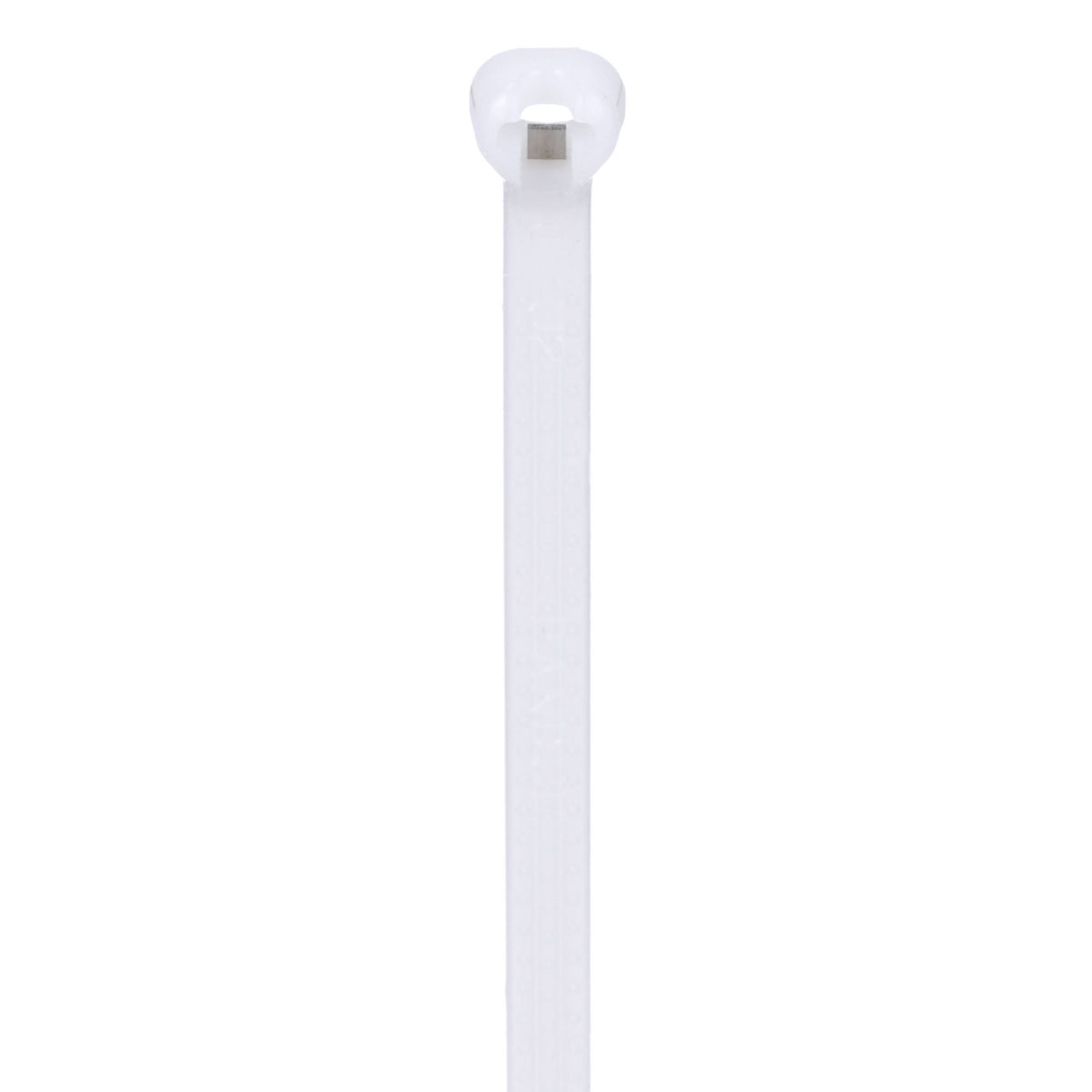

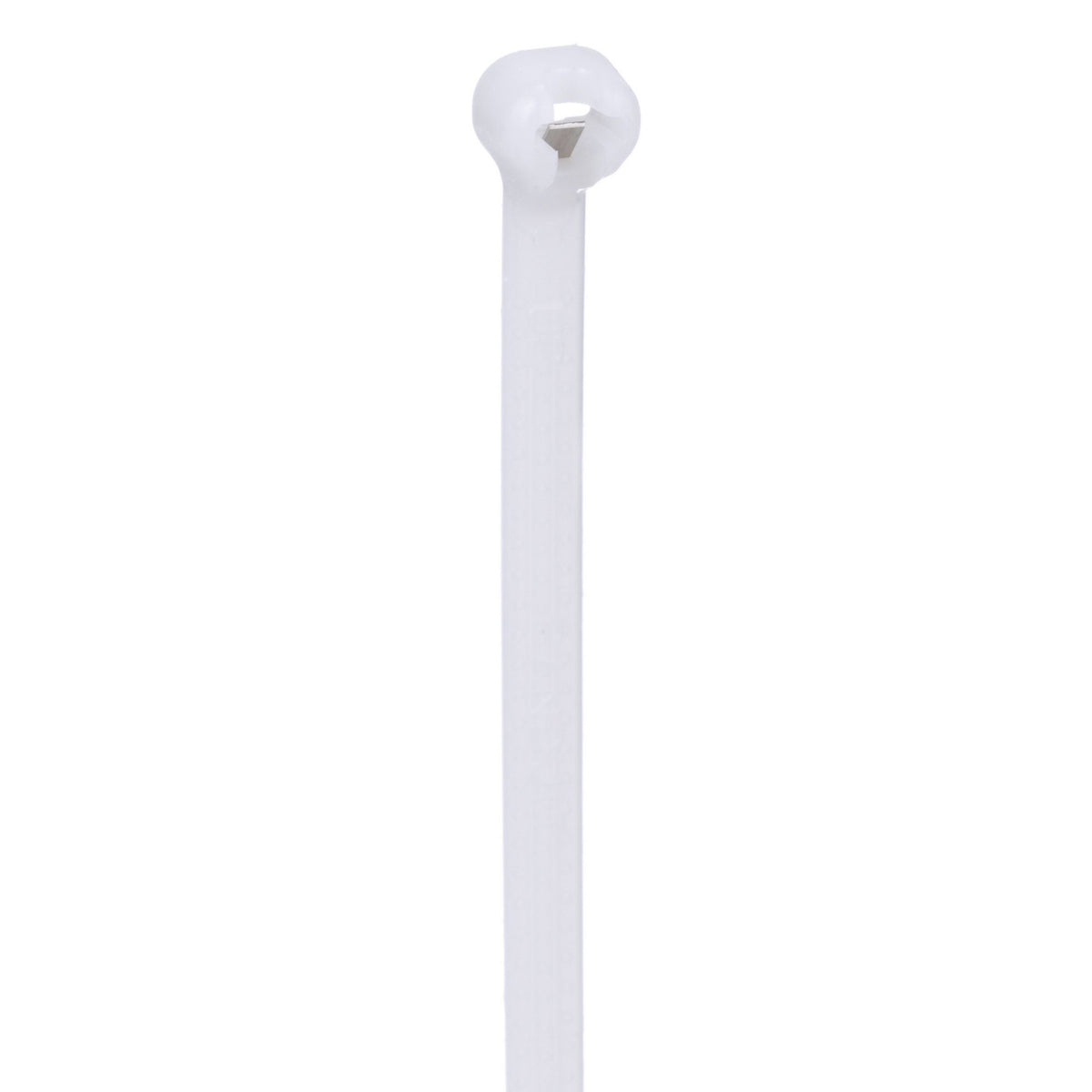

The BT3I-C Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Intermediate cross section, 11.3" (287mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
Panduit BT3I-C 11-1"; CABLE TIE 40 LBS 3.00"; BUNDLE DIA NATURAL ROHS
Specifications
Specifications
Panduit - BT3I-C - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - BT3I-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT3I-C |
| Item Description | Dome-Top BT3I-C Barb Tie, PA6.6, 11.3"L, 40lb, PK100 |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 11.3 |
| Overall Length (mm) | 287 |
| Body Width (In.) | 0.141 |
| Body Width (mm) | 3.6 |
| Body Thickness (In.) | 0.049 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.03 |
| Minimum Bundle Diameter (mm) | 0.8 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
Panduit - BT3I-C - Package Information
| UPC | 07498341366 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0534 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.5339 |
