Panduit BT3I-M0 | Dome-Top BT3I-M0 Barb Tie, Black, UV PA6.6, 11.3&...
Description
Description

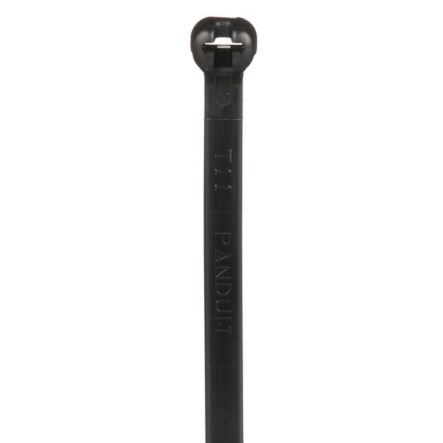

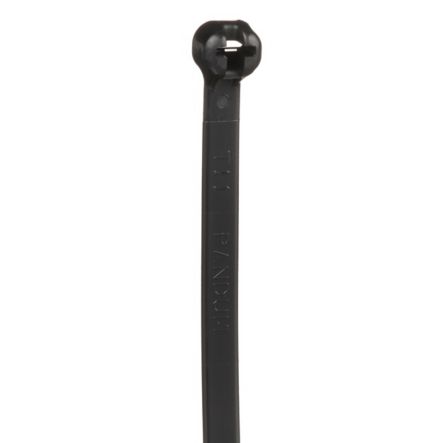

The BT3I-M0 Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Intermediate cross section, 11.3" (287mm) length. Appropriate for Indoor/Outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 1000.
Panduit - BT3I-M0 - Features
- Cable Tie with metal barb, 11.3";, Intermediate cross section
- Greater resistance to damage caused by ultraviolet light - indoor or outdoor use

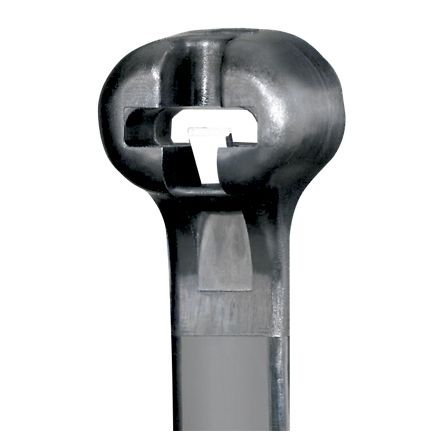

- Dome-top head features unique patented design with round, smooth edges
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- High strength and low thread force
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)
Specifications
Specifications
Panduit - BT3I-M0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - BT3I-M0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT3I-M0 |
| Item Description | Dome-Top BT3I-M0 Barb Tie, Black, UV PA6.6, 11.3"L, 40lb, PK1000 |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 11.3 |
| Overall Length (mm) | 287 |
| Body Width (In.) | 0.141 |
| Body Width (mm) | 3.6 |
| Body Thickness (In.) | 0.049 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.03 |
| Minimum Bundle Diameter (mm) | 0.8 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
Panduit - BT3I-M0 - Package Information
| UPC | 07498341371 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1956 |
| Standard. Ctn. Quantity | 10000 |
| Standard. Ctn. Volume (cf) | 1.9558 |
Panduit - BT3I-M0 - Videos
| Video 1 | Click to View |
|---|
