Brand: Panduit
|
SKU:
10331956

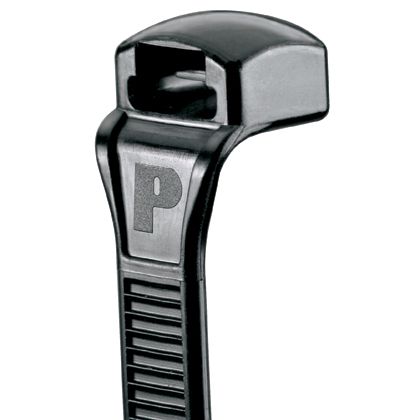

Panduit CBR1M-M30 | Contour-Ty CBR1M-M30 Contour Cable Tie, Black, High Heat PA6.6, 4.1"L, 18lb
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CBR1M-M30 | Contour-Ty CBR1M-M30 Contour Cable Tie, Black, ...
Regular price
$1.46
Unit price
Description
Description
Panduit CBR1M-M30 | Contour-Ty CBR1M-M30 Contour Cable Tie, Black, High Heat PA6.6, 4.1"L, 18lb
Panduit CBR1M-M30 Contour-Ty Cable Ties are designed to provide consistent strength in high-vibration environments. A low-profile head and parallel entry design, the curved tip enters easily and stays snug and snag-free. Miniature cross section, 4.1” (104mm) length. Appropriate for Indoor use. Made of Heat Stabilized Nylon 6.6 for high applications, are black in color and come in packages of 1000.
Panduit - CBR1M-M30 - Features
- Technical Info: SAE-AS23190A, SAE-AS33671, RoHS Complaint
Specifications
Specifications
Panduit - CBR1M-M30 - Product Categories
- Hardware
- Hardware
- Hardware
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - CBR1M-M30 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CBR1M-M30 |
| Item Description | Contour-Ty CBR1M-M30 Contour Cable Tie, Black, High Heat PA6.6, 4.1"L, 18lb |
| Product Type | Cable Tie |
| Sub Brand | Contour-Ty |
| Color | Black |
| Environment | Indoor |
| Material | Heat Stabilized Nylon 6.6 |
| Resistance Properties | Heat Resistant |
| Overall Length (In.) | 4.1 |
| Overall Length (mm) | 104 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.038 |
| Body Thickness (mm) | 1 |
| Maximum Bundle Diameter (In.) | 1 |
| Maximum Bundle Diameter (mm) | 25.4 |
| Minimum Bundle Diameter (In.) | 0.07 |
| Minimum Bundle Diameter (mm) | 1.8 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | SAE-AS23190A, SAE-AS33671, RoHS Compliant |
| Military Cross Reference Number | MS3367-30-11 |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Part Features | Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength |
| UNSPSC Code | 39121703 |
Panduit - CBR1M-M30 - Package Information
| UPC | 07498378465 |
|---|---|
| Std. Pkg. Qty. | 1000 |
| Std. Pkg. Volume (cf) | 0.0534 |
| Std. Ctn. Qty. | 50000 |
| Std. Ctn. Volume (cf) | 2.6700 |
Panduit - CBR1M-M30 - Videos
| Video 1 | Click to View |
|---|
