Brand: Panduit
|
SKU:
131154-EA
Panduit CF3IW-E | LD3 Low Voltage Coupler Fitting, Off White, Pack of 20
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CF3IW-E | LD3 Low Voltage Coupler Fitting, Off White, Pack ...
Regular price
$3.00
Unit price
Description
Description

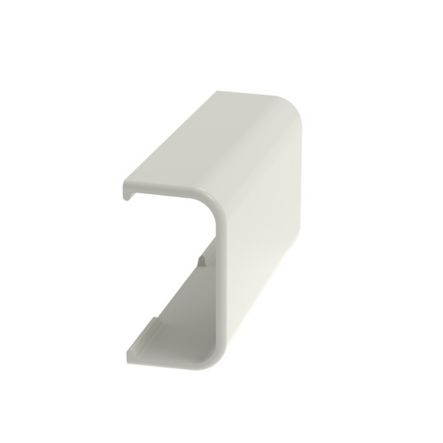

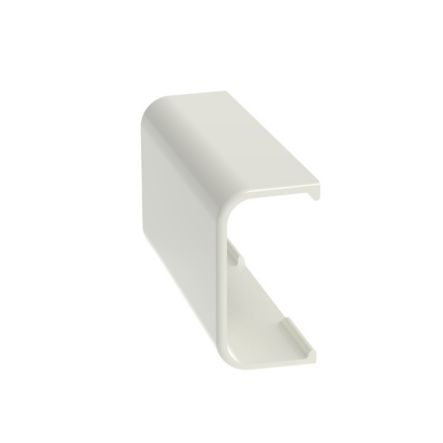

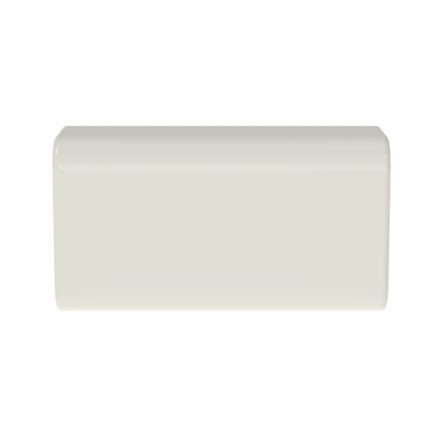

Panduit CF3IW-E | Surface Raceway, LD3 Coupler Fitting, Off-White
The coupler fitting is used to efficiently manage cable placement. It is designed to be used with LD3 Surface Raceway and is a 2 inch length. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It features a snap-on installation, is made of ABS plastic and is Off-White.
Specifications
Specifications
Panduit - CF3IW-E - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - CF3IW-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CF3IW-E |
| Item Description | Surface Raceway, LD3 Coupler Fitting, Off-White |
| Product Type | Low Voltage Fittings |
| Sub Brand | Pan-Way |
| Color | Off White |
| Fitting Type | Coupler |
| For Use With | LD3 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Overall Height (In.) | 0.44 |
| Overall Height (mm) | 11.2 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.83 |
| Overall Width (mm) | 21 |
| Application | Surface Raceway Products Provide Maximum Flexibility for Routing, Protecting, and Concealing High-Performance Copper, Voice, Video, Fiber Optic, and Electrical Wiring within any Enterprise Environment to Provide an Innovative and Satisfying Office Environ |
Panduit - CF3IW-E - Package Information
| UPC | 07498326237 |
|---|---|
| Standard Package Quantity | 20 |
| Standard Package Volume (cf) | 0.0100 |
| Standard. Ctn. Quantity | 100 |
| Standard. Ctn. Volume (cf) | 0.0501 |
Panduit - CF3IW-E - Videos
| Video 1 | Click to View |
|---|
