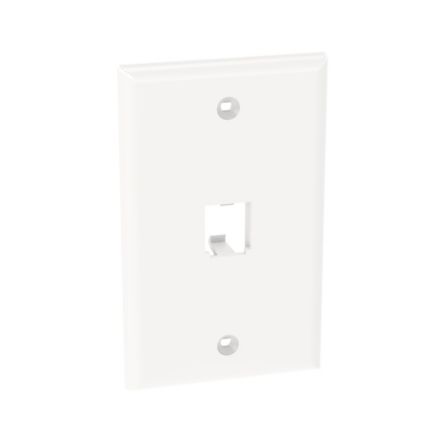

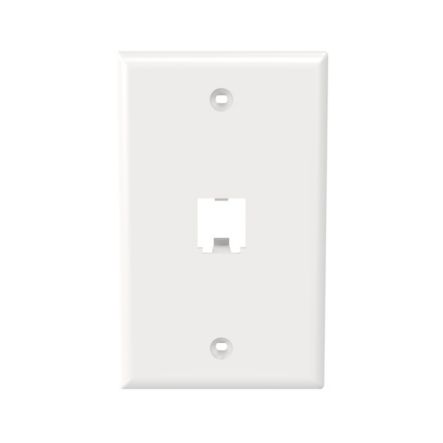

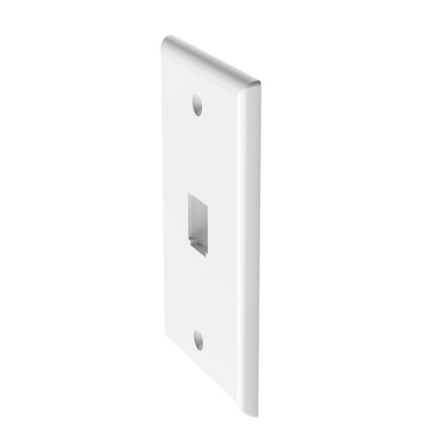

Panduit CFP1WH | Faceplate, 1 Port, Classic, White
Regular price
$4.06
Unit price
Brand: Panduit
|
SKU:
195751
Regular price
$4.06
Unit price
Description
Description
Panduit CFP1WH | Mini-Com, Classic, Faceplate, 1 port, White
The Mini-Com Classic Series Faceplate accepts one Mini-Com Module. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate can be identified with an adhesive label and is white.
Panduit - CFP1WH - Features
- Accept Mini-Com(TM) Modules for STP and UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes
- Optional adhesive labels available
Specifications
Specifications
Panduit - CFP1WH - Product Categories
- Copper Systems
- Faceplates & Adapters
Panduit - CFP1WH - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CFP1WH |
| Item Description | Mini-Com, Classic, Faceplate, 1 port, White |
| Product Type | Faceplate |
| Number of Ports | 1 |
| Module Type | Mini-Com |
| Sub Brand | Pan-Net |
| Material | ABS |
| Color | White |
| Identification Type | Adhesive Label |
| Outlet Orientation | Flat |
| Overall Width (In.) | 2.75 |
| Overall Width (mm) | 69.85 |
| Overall Depth (In.) | 0.68 |
| Overall Depth (mm) | 17.27 |
| Overall Height (In.) | 4.5 |
| Overall Height (mm) | 114.3 |
| Gang Opening Type | Single Gang |
| Mount Orientation | Vertical |
| Standards Met | RoHS Compliant |
Panduit - CFP1WH - Package Information
| UPC | 07498371594 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0175 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.1750 |
