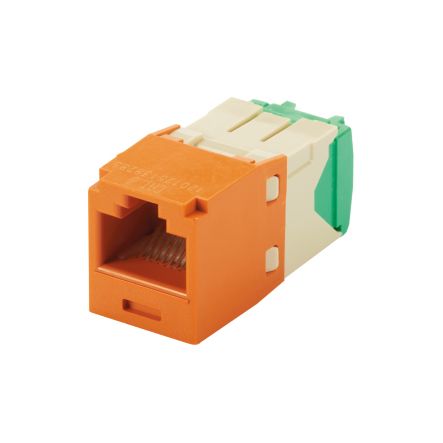

Panduit CJT688TGOR | Mini-Com UTP RJ45 Cat 6 28/30 AWG TG Jack Module, Orange
Panduit CJT688TGOR | Mini-Com UTP RJ45 Cat 6 28/30 AWG TG Jack Module, Orange

Panduit CJT688TGOR | Mini-Com UTP RJ45 Cat 6 28/30 AWG TG Jack Module, Orange

Part Number: 680424
0 Review(s)
Write a Review
Availability:
$16.50
Retail Price:$17.45
Your Savings:$0.95(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Panduit CJT688TGOR | Mini-Com UTP RJ45 Cat 6 28/30 AWG TG Jack Module, Orange

The Mini-Com Cat 6 UTP 28-30 AWG RJ45 TG Jack Module is designed to terminate 4-pair, 28-30 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

Panduit CJT688TGOR Mini-com Module, Cat 6, 28/30 AWG, UTP, 8 Pos 8 Wire, Universal, Orange, TG Style




https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Panduit - CJT688TGOR - Product Categories

  • Copper Systems
  • Jack Modules



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Panduit - CJT688TGOR - Specifications

Brand NamePanduit
Manufacturer Part NumberCJT688TGOR
Item DescriptionMini-Com UTP RJ45 Cat 6 28/30 AWG TG Jack Module, Orange
Product TypeJack Module
Performance LevelCategory 6
Connector TypeJack Module - 28AWG
Termination StyleTG Style
Body MaterialPolycarbonate
Contact MaterialPlated Phosphor Bronze
Module TypeMini-Com
Wiring SchemeT568A/T568B
Shield TypeUnshielded (UTP)
Sub BrandPan-Net
Maximum Operating Temperature (°C)75
Maximum Operating Temperature (°F)167
Minimum Operating Temperature (°C)-10
Minimum Operating Temperature (°F)14
Maximum Storage Temperature (°C)75
Maximum Storage Temperature (°F)167
Minimum Storage Temperature (°C)-40
Minimum Storage Temperature (°F)-40
Resistance PropertiesHeat-Resistant
ColorOrange
Standards MetExceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Overall Depth (In.)1.5
Overall Depth (mm)38.1
Overall Height (In.)0.72
Overall Height (mm)18.3
Overall Length (In.)1.5
Overall Length (mm)38.1
Overall Width (In.)0.62
Overall Width (mm)15.7



https://www.alldataresource.com/assets/images_tripplite/package_includes.jpg

Panduit - CJT688TGOR - Package Information

UPC07498359703
Standard Package Quantity1
Standard Package Volume (cf)0.0032
Standard Ctn. Quantity50
Standard Ctn. Volume (cf)0.1604



https://www.alldataresource.com/assets/icons/video.jpg

Panduit - CJT688TGOR - Videos

Video 1Click to View



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Panduit - CJT688TGOR - Documents and Downloads

Panduit CJT688TGOR Product BulletinsClick to View
Panduit CJT688TGOR Specification SheetsClick to View
Panduit CJT688TGOR Part DrawingsClick to View
