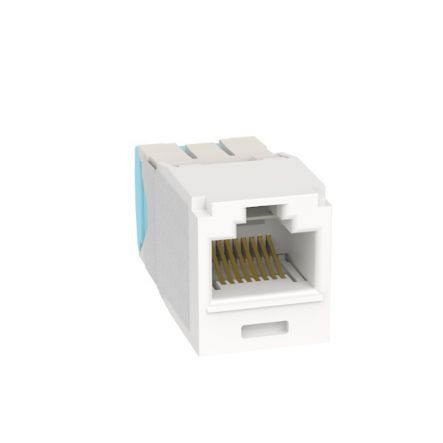

Panduit CJT6X88TGAW | Mini-Com UTP RJ45 Cat 6A 28/30 AWG TG Jack Mo...
Description
Description
The Mini-Com Cat 6A UTP 28-30 AWG RJ45 TG Jack Module is designed to terminate 4-pair, 28-30 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
Panduit CJT6X88TGAW Mini-com Module, Category 6A, UTP Module, 8 Pos 8 Wire, 28/30 AWG, Universal, Arctic White, TG Style
Specifications
Specifications
Panduit - CJT6X88TGAW - Product Categories
- Copper Systems
- Jack Modules
Panduit - CJT6X88TGAW - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJT6X88TGAW |
| Item Description | Mini-Com UTP RJ45 Cat 6A 28/30 AWG TG Jack Module, Arctic White |
| Product Type | Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module - 28AWG |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Arctic White |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Depth (In.) | 1.5 |
| Overall Depth (mm) | 38.1 |
| Overall Height (In.) | 0.72 |
| Overall Height (mm) | 18.3 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.64 |
| Overall Width (mm) | 16.3 |
Panduit - CJT6X88TGAW - Package Information
| UPC | 07498308498 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.1604 |
