Brand: Panduit
|
SKU:
CTAPF10-16-C

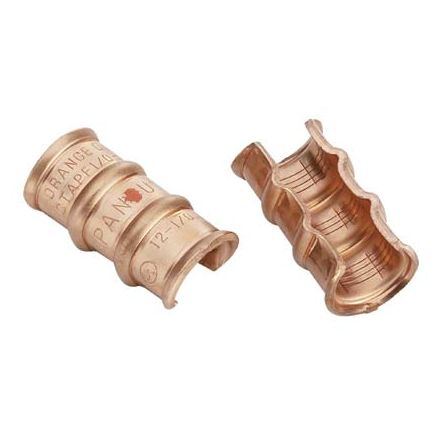

Panduit CTAPF10-16-C | Copper Compression CTAPs, Thin Wall, #14, #10 AWG Run, #16, #12 AWG Tap, Pack of 100
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CTAPF10-16-C | Copper Compression CTAPs, Thin Wall, #14, #1...
Regular price
$3.00
Unit price
Description
Description
Panduit CTAPF10-16-C | StructuredGround CTAPF10-16-C Compression Connectors - Taps
C-Type copper thin wall compression tap, type CTAPF, #10 AWG - #16 AWG.
Panduit - CTAPF10-16-C - Features
- C-Type copper thin wall compression tap, type CTAPF.
- For copper-to-copper tapping, splicing or pigtailing
- Wide wire range-taking capability minimizes inventory requirements
- Color-coded for proper crimp die selection
- Ribbed design provides high strength
- Made from high conductivity wrought copper
- UL Lid and CSA Certified to 600 V and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
Specifications
Specifications
Panduit - CTAPF10-16-C - Product Categories
- Grounding & Bonding
- CTAP & GCE Style Connectors
Panduit - CTAPF10-16-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CTAPF10-16-C |
| Item Description | StructuredGround CTAPF10-16-C Compression Connectors - Taps |
| Sub Brand | StructuredGround |
| Maximum Tap Size (AWG STR) | 12 |
| Minimum Tap Size (AWG STR) | 16 |
| Maximum Run Size (AWG STR) | 10 |
| Minimum Run Size (AWG STR) | 14 |
| Overall Length (In.) | 0.41 |
| Overall Length (mm) | 10.4 |
| Color | Red |
| Overall Thickness (In.) | 0.06 |
| Overall Thickness (mm) | 1.52 |
| Overall Width (In.) | 0.19 |
| Overall Width (mm) | 4.83 |
| Panduit Die Index Number | P21 |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Inside Diameter (In.) | 0.19 |
| Inside Diameter (mm) | 4.8 |
| For Use With | AWG wire only |
| Standards Met | UL listed and CSA certified to 600 V |
| Application | Utility/Ground Grid |
| Product Type | Compression Connectors - Taps |
| Material | Copper |
| Surface Treatment | Bare |
Panduit - CTAPF10-16-C - Package Information
| UPC | 07498379350 |
|---|---|
| Standard Pkg. Qty. | 100 |
| Standard Package Volume (cf) | 0.0184 |
| Standard Ctn. Qty. | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
