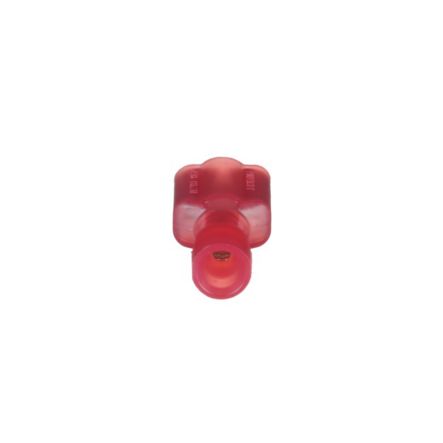

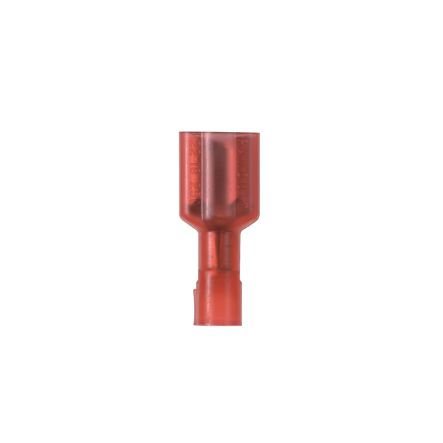

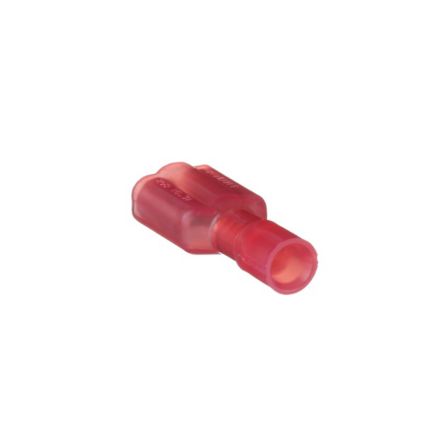

Panduit DNF18-250FIB-M | Pan-Term DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000
Panduit DNF18-250FIB-M Female Disconnect
Panduit - DNF18-250FIB-M - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- Coupler, male, and female parts sold separately
Specifications
Specifications
Panduit - DNF18-250FIB-M - Product Categories
- Wire Termination
- Disconnects
Panduit - DNF18-250FIB-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF18-250FIB-M |
| Item Description | Pan-Term DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Insulation Diameter (In.) | 0.14 |
| Maximum Wire Insulation Diameter (mm) | 3.6 |
| Overall Height (In.) | 0.22 |
| Overall Height (mm) | 5.6 |
| Overall Length (In.) | 0.84 |
| Overall Length (mm) | 21.3 |
| Overall Width (In.) | 0.35 |
| Overall Width (mm) | 8.9 |
| Tongue Angle | Straight |
| Packaging Type | Box |
| Product Type | Disconnect |
| For Use With | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Fully insulated design provides protection from electrical shorts • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310 |
Panduit - DNF18-250FIB-M - Package Information
| UPC | 07498382769 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1047 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
