Panduit DNFR18-250FIB-L | Female Disconnect, Right Angle, Nylon Fully Insulated, 22, 18 AWG, 0.250 x 0.032 Tab Size, Funnel Entry
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNFR18-250FIB-L | Female Disconnect, Right Angle, Nylon Ful...
Description
Description

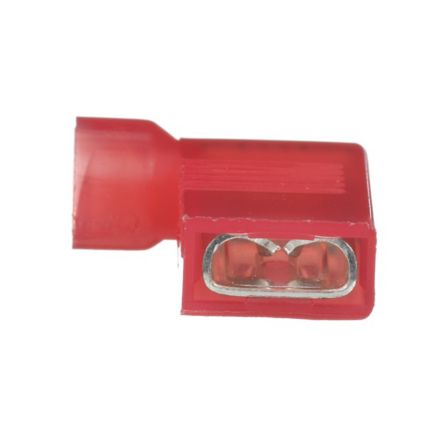

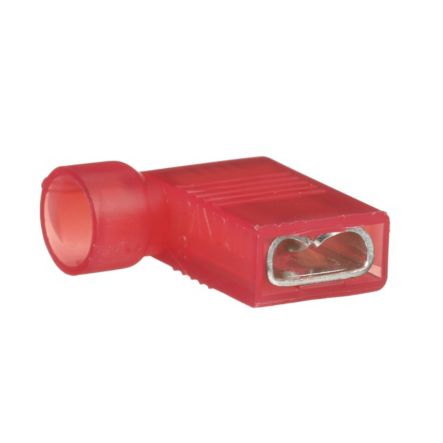

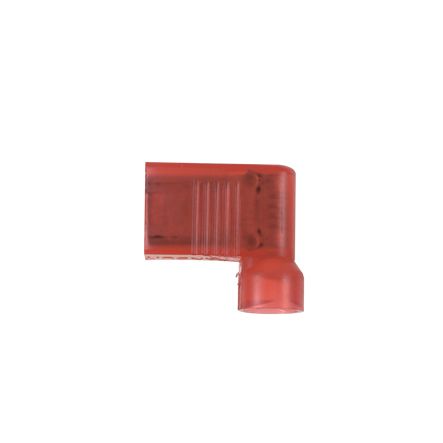

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.58" (14.7 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 50.
Specifications
Specifications
Panduit - DNFR18-250FIB-L - Product Categories
- Wire Termination
- Disconnects
Panduit - DNFR18-250FIB-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNFR18-250FIB-L |
| Item Description | Pan-Term DNFR18-250FIB-L Disconnect, Red, Vinyl, 18-22 AWG, 0.25" Tab, PK50 |
| Disconnect Type | Female Disconnect-Right Angle |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.18 |
| Insulation Diameter (mm) | 4.6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Insulation Diameter (In.) | 0.18 |
| Maximum Wire Insulation Diameter (mm) | 4.5 |
| Overall Depth (In.) | 0.6 |
| Overall Depth (mm) | 15.2 |
| Overall Length (In.) | 0.58 |
| Overall Length (mm) | 14.7 |
| Overall Width (In.) | 0.6 |
| Overall Width (mm) | 15.2 |
| Tongue Angle | Right Angle |
| Seam Type | Butted |
| Packaging Type | Bottle |
| Product Type | Disconnect |
| For Use With | CT-300-1 |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Right angle design for use in limited space applications • Fully insulated design provides protection from electrical shorts • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310 |
Panduit - DNFR18-250FIB-L - Package Information
| UPC | 07498311803 |
|---|---|
| Standard Pkg. Qty. | 50 |
| Standard Package Volume (cf) | 0.0074 |
| Standard Ctn. Qty. | 250 |
| Standard Ctn. Volume (cf) | 0.0368 |
