Brand: Panduit
|
SKU:
10044226
Panduit E10-14RB-Q | Ring Terminal | UPC - 07498328167
Regular price
$7.67
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit E10-14RB-Q | Ring Terminal | UPC - 07498328167
Regular price
$7.67
Unit price
Description
Description

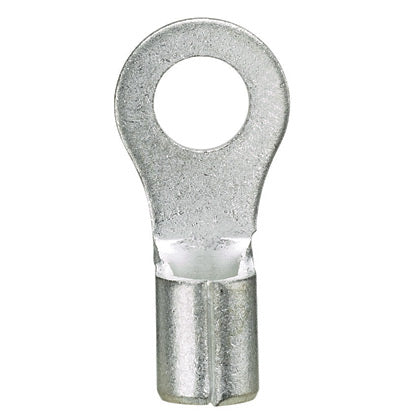

StrongHold Ring Terminal, Non-Insulated, 12 - 10 AWG, #1/4" Stud Size.
Panduit Panduit E10-14RB-Q | Ring Terminal | UPC - 07498328167 Key Specs
| Minimum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°F) | 302 |
| Stud Hole Size (In.) | 23/100 |
| Stud Hole Size (mm) | 6 |
| Stud Size | 1/4" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 6 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
Panduit Panduit E10-14RB-Q | Ring Terminal | UPC - 07498328167 Data Sheets
| Part Drawings | Non Insulated Ring Terminal 12-10 awg | Download and View |
Panduit Panduit E10-14RB-Q | Ring Terminal | UPC - 07498328167 Environmental Information
| Panduit's RoHS Statement | Download and View |
