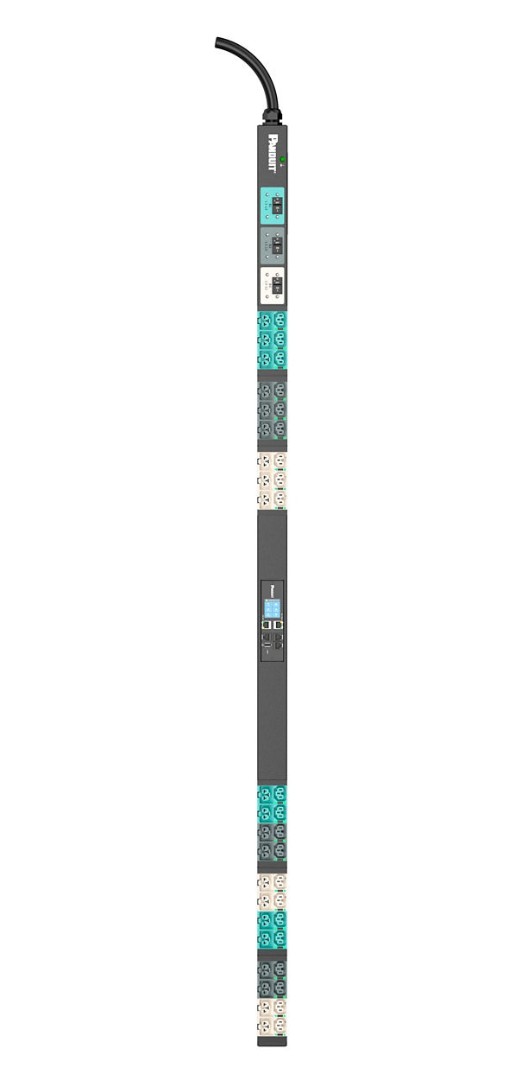

Panduit E42G03L | EL2P Intelligent PDU
Regular price
$4,060.80
Unit price
Brand: Panduit
|
SKU:
10622850
Regular price
$4,060.80
Unit price
Description
Description
Panduit E42G03L | EL2P Intelligent PDU
Enhance data center efficiency with our EL2P PDU offering. Benefit from real-time power monitoring, space-saving design, and rapid fault detection for improved system reliability.
Specifications
Specifications
Panduit - E42G03L - Specifications
| Note | USA, Canada& European Economic Region |
|---|---|
| Includes | (1) Mounting Hardware Kit |
| Product Type | PDU |
| Mount Orientation | Vertical |
| PDU Form Factor | 0U FULL |
| Rack PDU Type | Monitored & Switched per Outlet |
| Plug Type | IEC 60309 2P+E 6h 30A/32A (IP44) |
| Number of Circuit Breakers | 3 |
| Input Amperage (A) | 30 (NA)/32 (EU) |
| Phase | Single-Phase |
| Frequency Compatibility (Hz) | 50/60 |
| Current Measurement Accuracy (%) | ±1% |
| Voltage Measurement Accuracy (%) | ±1% |
| Power Measurement Accuracy (%) | ±1% |
| Input Cord Length (ft.) | 10 |
| Input Cord Length (m) | 3 |
| Output Receptacles | (21)C13/C15, (21)C13/C15/C19/C21 |
| Output Voltage (V) | 230 |
| Front Panel Display | Use display to set IP address, update firmware, quick configure, rotate display, balance loads across phases, view alarms, read current, voltage, power and energy on the device |
