Panduit ECFX10IW-X | Surface Raceway, LDPH10 Power Rated End Cap, O...
Regular price
$3.18
Unit price
Brand: Panduit
|
SKU:
256986
Regular price
$3.18
Unit price
Description
Description

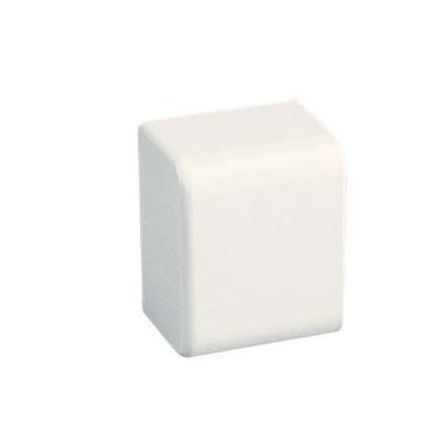

Panduit ECFX10IW-X | Surface Raceway, LDPH10 Power Rated End Cap, Off-White
The power rated end cap fitting allows for closing off one end of the Surface Raceway when you no longer need to run cables. It is designed to be used with the LD10 and LDPH10 Surface Raceway. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant and rated to 600V. It features a snap-on installation, is made of ABS plastic and is Off-White.
Panduit - ECFX10IW-X - Features
- Multi-channel fittings for LD2P10 are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
- Applications: Pan-Way LD Surface Raceways are Designed to Provide Easy and Economical Solutions For Routing any Low Voltage Cable Along Smooth and Clean Perimeter Walls, Baseboards or Ceilings. This Raceway is a Perfect Solution for Schools, Hospitals, Offices, Home s
- Technical Info: Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
Specifications
Specifications
Panduit - ECFX10IW-X - Product Categories
- Hardware
- Hardware
- Hardware
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - ECFX10IW-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ECFX10IW-X |
| Item Description | Surface Raceway, LDPH10 Power Rated End Cap, Off-White |
| Product Type | Power Rated Fittings |
| Sub Brand | Pan-Way |
| Color | Off White |
| Fitting Type | End Cap |
| For Use With | LDPH10, LD2P10 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Power Rated |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Height (In.) | 0.93 |
| Overall Height (mm) | 23.6 |
| Overall Length (In.) | 1.25 |
| Overall Length (mm) | 31.8 |
| Overall Width (In.) | 1.62 |
| Overall Width (mm) | 41.1 |
| Application | Pan-Way LD Surface Raceways are Designed to Provide Easy and Economical Solutions For Routing any Low Voltage Cable Along Smooth and Clean Perimeter Walls, Baseboards or Ceilings. This Raceway is a Perfect Solution for Schools, Hospitals, Offices, Homes |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
| Color | White |
| Components | Fittings |
| Type | Non-Metallic |
| UNSPSC Code | 39131709 |
Panduit - ECFX10IW-X - Package Information
| UPC | 07498352954 |
|---|---|
| Std. Pkg. Qty. | 10 |
| Std. Pkg. Volume (cf) | 0.0370 |
| Std. Ctn. Qty. | 50 |
| Std. Ctn. Volume (cf) | 0.1850 |
