Panduit F1X2IB6 | Base Wiring Duct | UPC - 07498301796
Regular price
$49.60
Unit price
Brand: Panduit
|
SKU:
PAN-F1X2IB6
Regular price
$49.60
Unit price
Description
Description

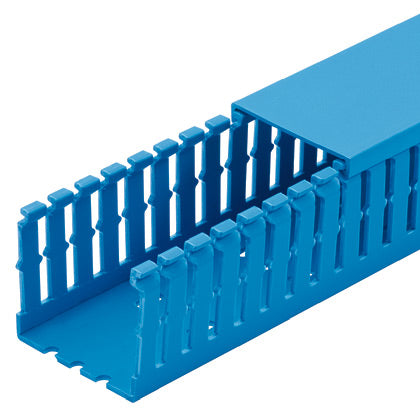

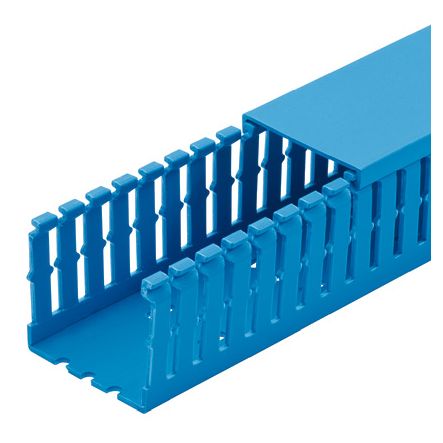

Panduit Slot Wall Wiring Duct, Type F Narrow, 1.26 in Width, 2 in Depth, 6 ft Length, 2 mil Thickness, 0.2 in Slot, Surface Mount, Lead-Free PVC, Intrinsic Blue
Features + Benefits
- Narrow finger and slot design closely matches the spacing of high-density components
- Upper and lower scorelines allows easy finger and sidewall section removals
Panduit F1X2IB6 | Base Wiring Duct | UPC - 07498301796 Key Specs
| Application | (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation |
| Product Type | Base Wiring Duct |
| Color | Intrinsic Blue |
| Cover Part Number | C1IB6 |
| Flammability Rating | UL94 V-0 |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
| Overall Height (In.) | 2.12 |
| Overall Height (mm) | 53.8 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 31.8 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5.1 |
| Sub Brand | Panduct |
Panduit F1X2IB6 | Base Wiring Duct | UPC - 07498301796 Data Sheets
| Part Drawings | Narrow Slot Wiring Duct | Download and View |
| Specification Sheets | Type C Wiring Duct Cover with Protective Film | Download and View |
| Cross References | Wiring Duct Available Colors and Sizes | Download and View |
Panduit F1X2IB6 | Base Wiring Duct | UPC - 07498301796 Environmental Information
| Panduit's RoHS Statement | Download and View |
