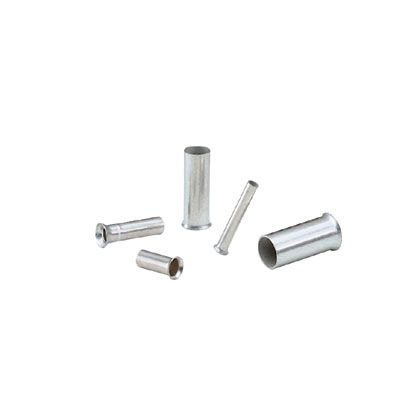

Panduit F80-12-M | Single Wire Ferrule
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type F Non-Insulated Standard, Stranded Conductor, 14 AWG Conductor, 12 mm Length, Seamless Barrel, 0.13 in OD Barrel, 15/32 in L Wire Strip, 302 deg F, Copper, Tin Plated, Metallic
For long-lasting performance, the single wire ferrule ensures clean, secure wire connections for terminal blocks in tight spaces.
Ferrule, non-insulated, 14 AWG wire range, 0.47(12.0mm) length.
Panduit - F80-12-M - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
Specifications
Specifications
Panduit - F80-12-M - Specifications
| Type | Extension Terminal |
|---|---|
| UNSPSC Code | 39121400 |
| Technical Information | DIN 46228 Part 1, CSA C22.2 No. 291-14 |
| Ferrule Type | Single Wire Standard |
| Copper Conductor Size (AWG) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| UL Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°C) | 150 |
| Wire Strip Length (In.) | 15/32 |
| Wire Strip Length (mm) | 12 |
| Inside Diameter (In.) | 0.09 |
| Inside Diameter (mm) | 2.2 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.1 |
| Outer Diameter (mm) | 2.5 |
| Overall Length (In.) | 0.47 |
| Overall Length (mm) | 12 |
| Product Type | Non-Covered Ferrule |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1002, CT-1003, CT-1123, CT-1090, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| UPC | 07498376338 |
Panduit - F80-12-M - Package Information
| UPC | 07498376338 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.1164 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
