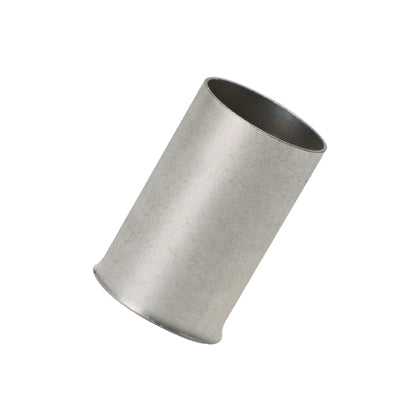

Panduit F94-40-Q | Non-insulated Ferrules | UPC - 07498333358
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type F Large, 400 kcmil Conductor, 40 mm Length, Seamless Barrel, 1.02 in OD Barrel, 1-3/4 in L Wire Strip, 302 deg F, Copper, Tin Plated, Metallic
Features + Benefits
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
Panduit F94-40-Q | Non-insulated Ferrules | UPC - 07498333358 Key Specs
| Insulation Material | Non-Insulated |
| Wire Strip Length (In.) | 1.57 |
| Wire Strip Length (mm) | 40 |
| Pin Length (In.) | 1.57 |
| Pin Length (mm) | 44 |
| Inside Diameter (In.) | 0.9 |
| Inside Diameter (mm) | 22.8 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.94 |
| Outer Diameter (mm) | 24 |
| Overall Length (In.) | 1.57 |
| Overall Length (mm) | 40 |
| Product Type | Non-insulated Ferrules |
| Standards Met | DIN 46228 Part 1, CSA C22.2 No. 291-14 |
Panduit F94-40-Q | Non-insulated Ferrules | UPC - 07498333358 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Ferrules - Bare, No Sleeve Sheet 1 Of 2 | Download and View |
| Catalog Cut Sheets | Ferrules, Non-Insulated | Download and View |
Panduit F94-40-Q | Non-insulated Ferrules | UPC - 07498333358 Environmental Information
| Panduit's RoHS Statement | Download and View |
