Panduit FL12X12LG | Panduct FL12X12LG Flexible Wiring Duct
Regular price
$8.59
Unit price
Brand: Panduit
|
SKU:
10332152
Regular price
$8.59
Unit price
Description
Description
Panduit FL12X12LG | Panduct FL12X12LG Flexible Wiring Duct

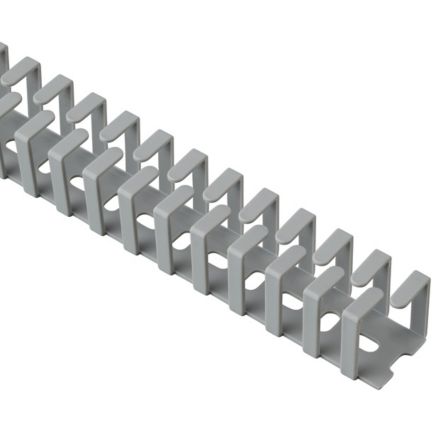

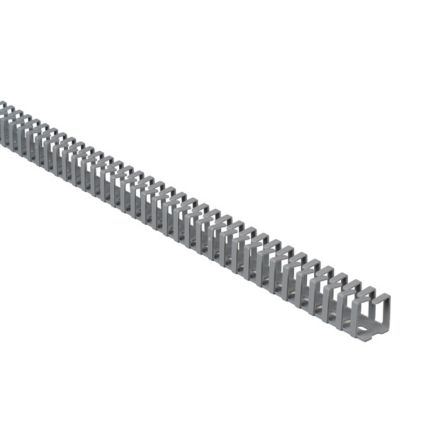

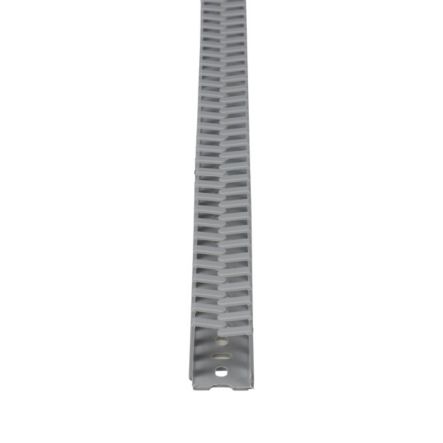

The FL12X12LG Flexible Wiring Duct is a one-piece, slotted sidewall, open finger design meant to route/protect wires in applications that require flexibility. Designed to add/remove wires after termination without special tooling. Flexible polypropylene material without Adhesive, 0.49" x 0.49" (12.5 mm x 12.5 mm) and 19.7" (500 mm) long. Color Light Gray. 112 per package.
Panduit FL12X12LG | Panduit Fl12X12Lg Flexible Wiring Duct
Panduit - FL12X12LG - Features
- The FL12X12LG Flexible Wiring Duct is a one-piece, slotted sidewall, open finger design meant to route/protect wires in applications that require flexibility. Designed to add/remove wires after termination without special tooling. Flexible polypropylen e material without Adhesive, 0.49" x 0.49" (12.5 mm x 12.5 mm) and 19.7" (500 mm) long. Color Light Gray. 112 per package.
- Technical Information: RoHS Compliant, UL Recognized, CSA Approved
Specifications
Specifications
Panduit - FL12X12LG - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - FL12X12LG - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FL12X12LG |
| Item Description | Panduct FL12X12LG Flexible Wiring Duct |
| Application | Manage cable and wire in tight spaces and where flexibility would be an advantage |
| Product Type | Flexible Wiring Duct |
| Color | Light Gray |
| Cover Part Number | None |
| Flammability Rating | UL94V-2 |
| Includes | High bond adhesive |
| Standards Met | RoHS Compliant, UL Recognized, CSA Approved |
| Material | Polypropylene |
| Mount Method | Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Flexible Wiring Duct |
| Wiring Duct Type | FL |
| Overall Height (In.) | 0.49 |
| Overall Height (mm) | 12.5 |
| Overall Width (In.) | 0.49 |
| Overall Width (mm) | 12.5 |
| Slot Width (In.) | 0.4 |
| Slot Width (mm) | 10.3 |
| Sub Brand | Panduct |
Panduit - FL12X12LG - Package Information
| UPC | 61305681806 |
|---|---|
| Standard Package Quantity | 112 |
| Standard Package Volume (cf) | 0.3082 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FL12X12LG - Videos
| Video 1 | Click to View |
|---|
