Panduit FL50X50LG-AV | Panduct Fl50X50Lg-Av Flexible Wiring Duct
Description
Description

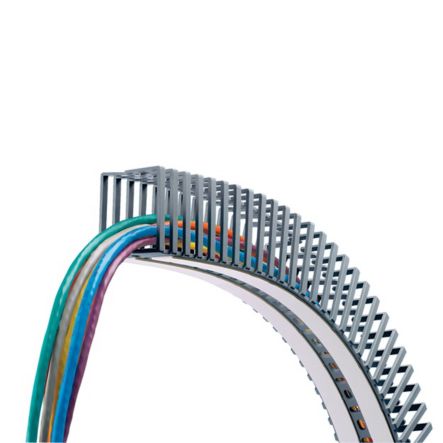

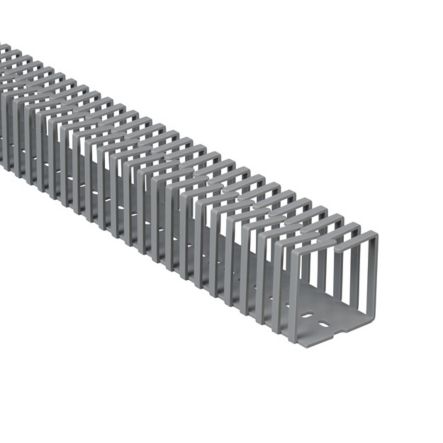

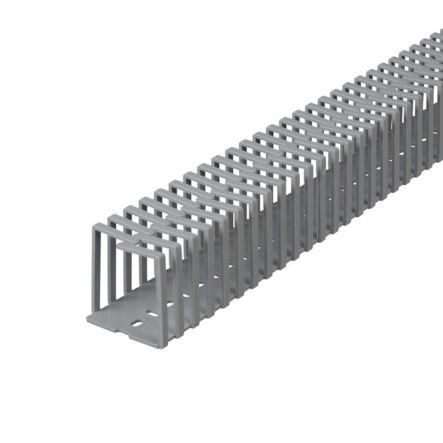

The FL50X50LG-AV Flexible Wiring Duct is a one-piece, slotted sidewall, open finger design meant to route/protect wires in applications that require flexibility. Designed to add/remove wires after termination without special tooling. Flexible polypropylene material with High Bond Acrylic Adhesive option is provided for easy positioning and for use on control panel doors and areas where other mounting options are not possible, 1.97" x 1.97" (50.0 mm x 50.0mm) and 19.7" (500 mm) long. Color Light Gray. 32 per package.
Panduit - FL50X50LG-AV - Features
- The FL50X50LG-AV Flexible Wiring Duct is a one-piece, slotted sidewall, open finger design meant to route/protect wires in applications that require flexibility. Designed to add/remove wires after termination without special tooling. Flexible polypropy lene material with High Bond Acrylic Adhesive option is provided for easy positioning and for use on control panel doors and areas where other mounting options are not possible, 1.97" x 1.97" (50.0 mm x 50.0mm) and 19.7" (500 mm) long. Color Light Gray . 32 per package.
- Technical Information: RoHS Compliant, UL Recognized, CSA Approved
Specifications
Specifications
Panduit - FL50X50LG-AV - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - FL50X50LG-AV - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FL50X50LG-AV |
| Item Description | Panduct Fl50X50Lg-Av Flexible Wiring Duct |
| Application | Manage cable and wire in tight spaces and where flexibility would be an advantage |
| Note | For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation. |
| Product Type | Flexible Wiring Duct |
| Color | Light Gray |
| Cover Part Number | None |
| Flammability Rating | UL94V-2 |
| Includes | High bond adhesive |
| Standards Met | RoHS Compliant, UL Recognized, CSA Approved |
| Material | Polypropylene |
| Mount Method | Mounting Holes with Adhesive |
| Measurement System | Metric |
| Wiring Duct Style | Flexible Wiring Duct |
| Wiring Duct Type | FL |
| Overall Height (In.) | 1.97 |
| Overall Height (mm) | 50 |
| Overall Width (In.) | 1.97 |
| Overall Width (mm) | 50 |
| Slot Width (In.) | 1.8 |
| Slot Width (mm) | 45 |
| Sub Brand | Panduct |
Panduit - FL50X50LG-AV - Package Information
| UPC | 61305681805 |
|---|---|
| Standard Package Quantity | 32 |
| Standard Package Volume (cf) | 1.0000 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FL50X50LG-AV - Videos
| Video 1 | Click to View |
|---|
Documents and Downloads
Documents and Downloads
