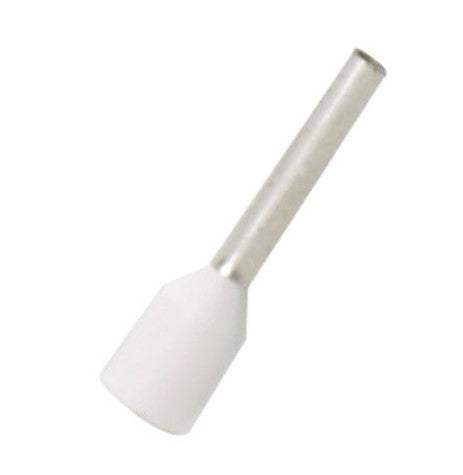

Panduit FSDX75-8-D | Single Wire Ferrule with Expanded End Sleeve
Regular price
$1.26
Unit price
Brand: Panduit
|
SKU:
10044403-EA
Regular price
$1.26
Unit price
Description
Description
Panduit FSDX75-8-D | Single Wire Ferrule with Expanded End Sleeve
Our single wire ferrule with an expanded end sleeve handles thick wires effortlessly in terminal blocks and panels, creating a secure connection that resists vibrations for long-lasting performance.
Specifications
Specifications
Panduit - FSDX75-8-D - Specifications
| Ferrule Type | Single Wire Standard |
|---|---|
| Cover Material | Polypropylene |
| Copper Conductor Size | 20 AWG |
| Maximum Metric Conductor Size (mm²) | 0.75 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL 94 HB |
| Wire Strip Length (In.) | 15/32 |
| Wire Strip Length (mm) | 11.9 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Inside Diameter (In.) | 0.04 |
| Inside Diameter (mm) | 1.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.12 |
| Maximum Wire Insulation Diameter (mm) | 3 |
| Outer Diameter (In.) | 0.05 |
| Outer Diameter (mm) | 1.4 |
