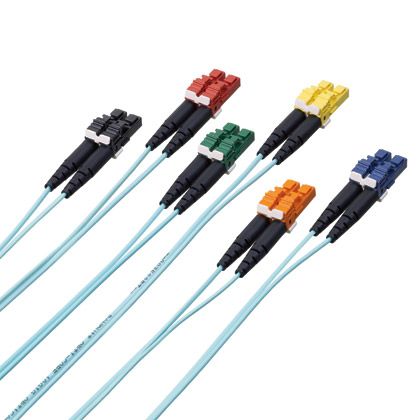

LC (keyed F dark blue) to LC (keyed F dark blue) multimode duplex patch cord, 16mm jacketed cable (one duplex keyed LC connector on each end) 50/125µm, Aqua, 2 meters

Panduit FXE10F-10FM2 Key Specs

NoteIntended for use in fixed installations which are outside the scope of RoHS
Fiber TypeOM3
Number of Fibers2
Connector 1 TypeKeyed LC
Connector 2 TypeKeyed LC Duplex
Flammability RatingRiser
Maximum Connector Insertion Loss (dB)0.3
Minimum Connector Return Loss (dB)26
Overall Length (ft.)6.56
Overall Length (m)2
Fiber Diameter (µm)50
Outer Diameter (In.)0.06
Outer Diameter (mm)1.6
Resistance PropertiesFlame-Resistant
Cable ColorAqua
Standards MetRoHS Directive is not applicable;Compliant with TIA/EIA-568-B.3, IEC-61754-7 (International), and UL1666 (OFNR) or NFPA 262 (OFNP) flame ratings
ApplicationThe primary application for Keyed LC Opti-Core Fiber Optic Patch Cords and Pigtails is FTTD deployments that require a level of visual and mechanical differentiation, and physical layer security that conventional connector solutions cannot provide.
Body StyleDuplex
Product TypeKeyed LC Patch Cord
Sub BrandOpti-Core

Panduit FXE10F-10FM2 Data Sheets

Line Cards | Network Infrastructure Security Solutions Line Card: COLC07--SA-ENGDownload and View
