Panduit G2X2BL6-A Slotted Duct, PVC,2";X2";X6’;L, ADH,Black
Regular price
$65.28
Unit price
Brand: Panduit
|
SKU:
342361
Regular price
$65.28
Unit price
Description
Description

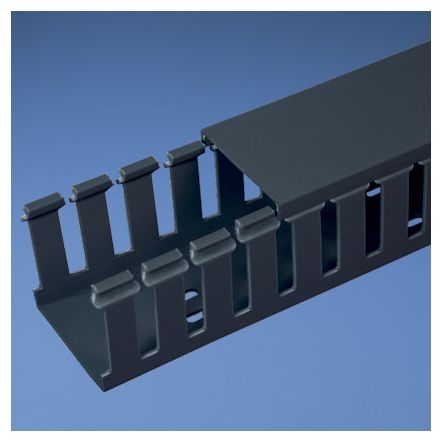

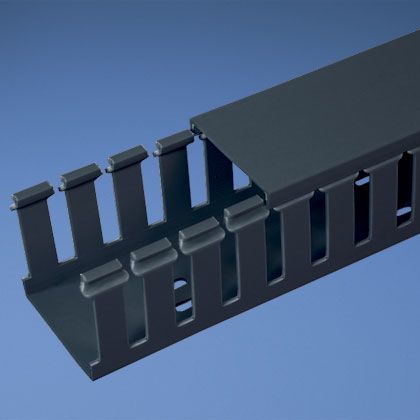

Panduit G2X2BL6-A | Panduct G2X2BL6-A Base Wiring Duct
The G2X2BL6-A Panduct Lead-Free PVC Wide Slot Adhesive Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Adhesive and mounting holes provided. 2.0" x 2.0" (50.8 mm x 50.8 mm) and 6' (1.8 m) long. Cover sold separately. Color Black.
Panduit - G2X2BL6-A - Features
- Specifications
- Made of lead-free PVC
- UL Recognized continuous use temperature: 122 F (50C)
- UL94 Flammability Rating of V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Provided with mounting holes
Specifications
Specifications
Panduit - G2X2BL6-A - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - G2X2BL6-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | G2X2BL6-A |
| Item Description | Panduct G2X2BL6-A Base Wiring Duct |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Note | Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation |
| Product Type | Base Wiring Duct |
| Color | Black |
| Cover Part Number | C2BL6 |
| Flammability Rating | UL94 V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes with Adhesive |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Overall Height (In.) | 2.12 |
| Overall Height (mm) | 53.8 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 2.25 |
| Overall Width (mm) | 57.2 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | Panduct |
| Part Features | Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. |
Panduit - G2X2BL6-A - Package Information
| UPC | 07498361569 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.1361 |
| Standard. Ctn. Quantity | 120 |
| Standard. Ctn. Volume (cf) | 2.7213 |
