Panduit G2X2IB6 Slotted Duct, PVC,2";X2";X6’;L, Intrinsic...
Regular price
$53.52
Unit price
Brand: Panduit
|
SKU:
313764
Regular price
$53.52
Unit price
Description
Description

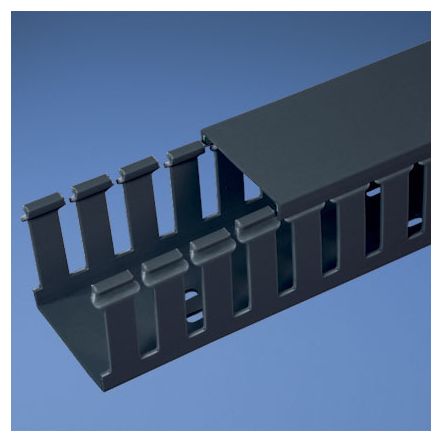

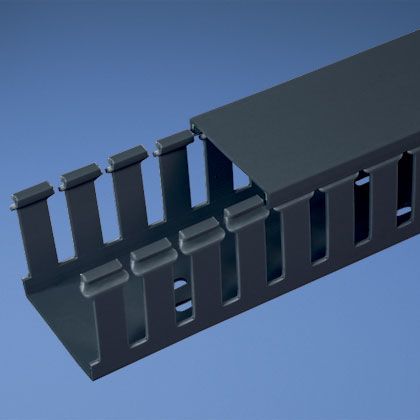

Panduit G2X2IB6 | Panduct G2X2IB6 Base Wiring Duct
The G2X2IB6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 2.0" x 2.0" (50.4 mm x 50.8 mm) and 6' (1.8 m) long. Cover sold separately. Color Intrinsic Blue.
Panduit - G2X2IB6 - Features
- Specifications
- Made of lead-free PVC
- UL Recognized continuous use temperature: 122 F (50C)
- UL94 Flammability Rating of V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Provided with mounting holes
Specifications
Specifications
Panduit - G2X2IB6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - G2X2IB6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | G2X2IB6 |
| Item Description | Panduct G2X2IB6 Base Wiring Duct |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Product Type | Base Wiring Duct |
| Color | Intrinsic Blue |
| Cover Part Number | C2IB6 |
| Flammability Rating | UL94 V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Overall Height (In.) | 2.12 |
| Overall Height (mm) | 53.8 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 2.25 |
| Overall Width (mm) | 57.2 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | Panduct |
| Part Features | Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. |
Panduit - G2X2IB6 - Package Information
| UPC | 07498361952 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.1361 |
| Standard. Ctn. Quantity | 120 |
| Standard. Ctn. Volume (cf) | 2.7213 |
