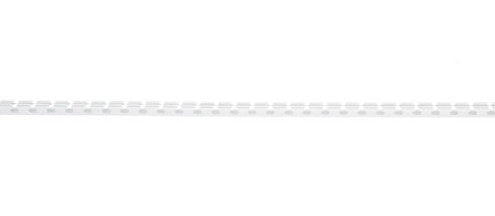

Panduit G.5X.5WH6 | Panduct Type G Wide Slot Wiring Duct
Regular price
$29.52
Unit price
Brand: Panduit
|
SKU:
929941
Regular price
$29.52
Unit price
Description
Description
Panduit G.5X.5WH6 | Panduct Type G Wide Slot Wiring Duct
Our Type G wide slot wiring duct securely accommodates various wire bundle sizes with its rigid design, enabling flexible cable organization in control panels and electrical enclosures.
Specifications
Specifications
Panduit - G.5X.5WH6 - Specifications
| Product Type | Base Wiring Duct |
|---|---|
| Application | Wide Slot Wiring Duct for use in Control Panel and Machine Builder applications |
| Color | White |
| Cover Part Number | C.5WH6 |
| Flammability Rating | UL 94 V-0 |
| Includes | (1) Base |
| Note | Cover sold separately |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Nominal Width (In.) | 0.5 |
| Nominal Height (In.) | 0.5 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.83 |
| Overall Width (In.) | 0.69 |
