Brand: Panduit
|
SKU:
HSTT50-CC-FT

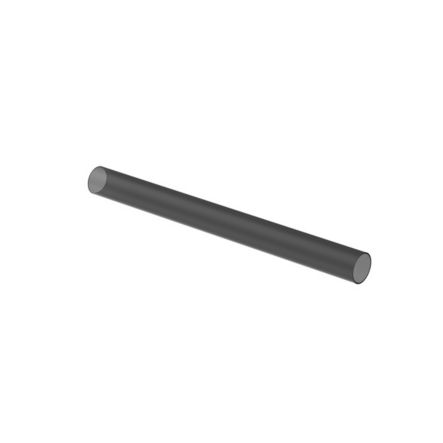

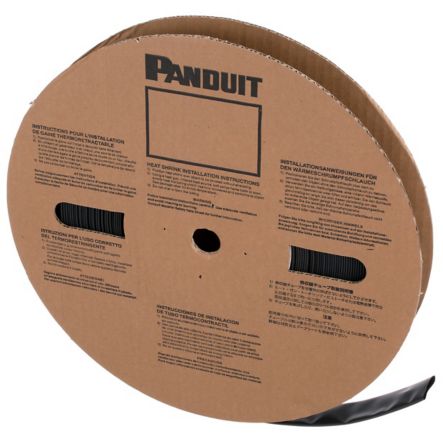

Panduit HSTT50-CC | Heat Shrink Thin, .50";(12.7mm) Diameter, Clear, 100 FT. Reel
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTT50-CC | Heat Shrink Thin, .50";(12.7mm) Diameter, ...
Regular price
$1.46
Unit price
Description
Description
Panduit HSTT50-CC | Dry-Shrink HSTT50-CC Heatshrink, Clear, PO, 100' L, 0.5" to 0.25" ID, PK1
The HSTT50-CC Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Cross-linked polyolefin. 0.50" Diameter x 100’ Long (12.7 mm x 30.5 m). Color Clear. 1 roll.
Panduit - HSTT50-CC - Features
- Thin Wall Polyolefin Heat Shrink
- General Purpose heat shrink tubing for dry locations
- Applications include insulating, protecting, harnessing and identifying wires.
- Material Type: Crosslinked Polyolefin
- Shrink Ratio: 2:1
- Temperature Range: -67F to 275F (-55C to 135C)
- Flammability Rating: Flame retardant EXCEPT clear
- Voltage: 600 V
- UL Recognized, CSA Certified
- Mil Spec: AMS-DTL-23053/5 Class 1 (Colors) Class 2 (Clear)
Specifications
Specifications
Panduit - HSTT50-CC - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSTT50-CC - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTT50-CC |
| Item Description | Dry-Shrink HSTT50-CC Heatshrink, Clear, PO, 100' L, 0.5" to 0.25" ID, PK1 |
| Product Type | Heat Shrink |
| Adhesive Lined | No |
| Color | Clear |
| Material | Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 0.5 |
| Nominal Diameter (mm) | 12.7 |
| Nominal Recovered Wall Thickness (In.) | 0.025 |
| Nominal Recovered Wall Thickness (mm) | 0.6 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 1200 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Overall Length (mm) | 30500 |
| Standards Met | Mil Spec: AMS-DTL-23053/5 Class 2 |
| Shrink Ratio | 2:1 |
| Shrink Temperature (°C) | 90 |
| Shrink Temperature (°F) | 194 |
| Maximum Recovered Inside Diameter (In.) | 0.25 |
| Maximum Recovered Inside Diameter (mm) | 6.4 |
| Minimum Expanded Inside Diameter (In.) | 0.5 |
| Minimum Expanded Inside Diameter (mm) | 12.7 |
| Application | For Dry Locations; Insulating and protecting wires and cables |
Panduit - HSTT50-CC - Package Information
| UPC | 07498374720 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.4231 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 4.2311 |
Panduit - HSTT50-CC - Videos
| Video 1 | Click to View |
|---|
