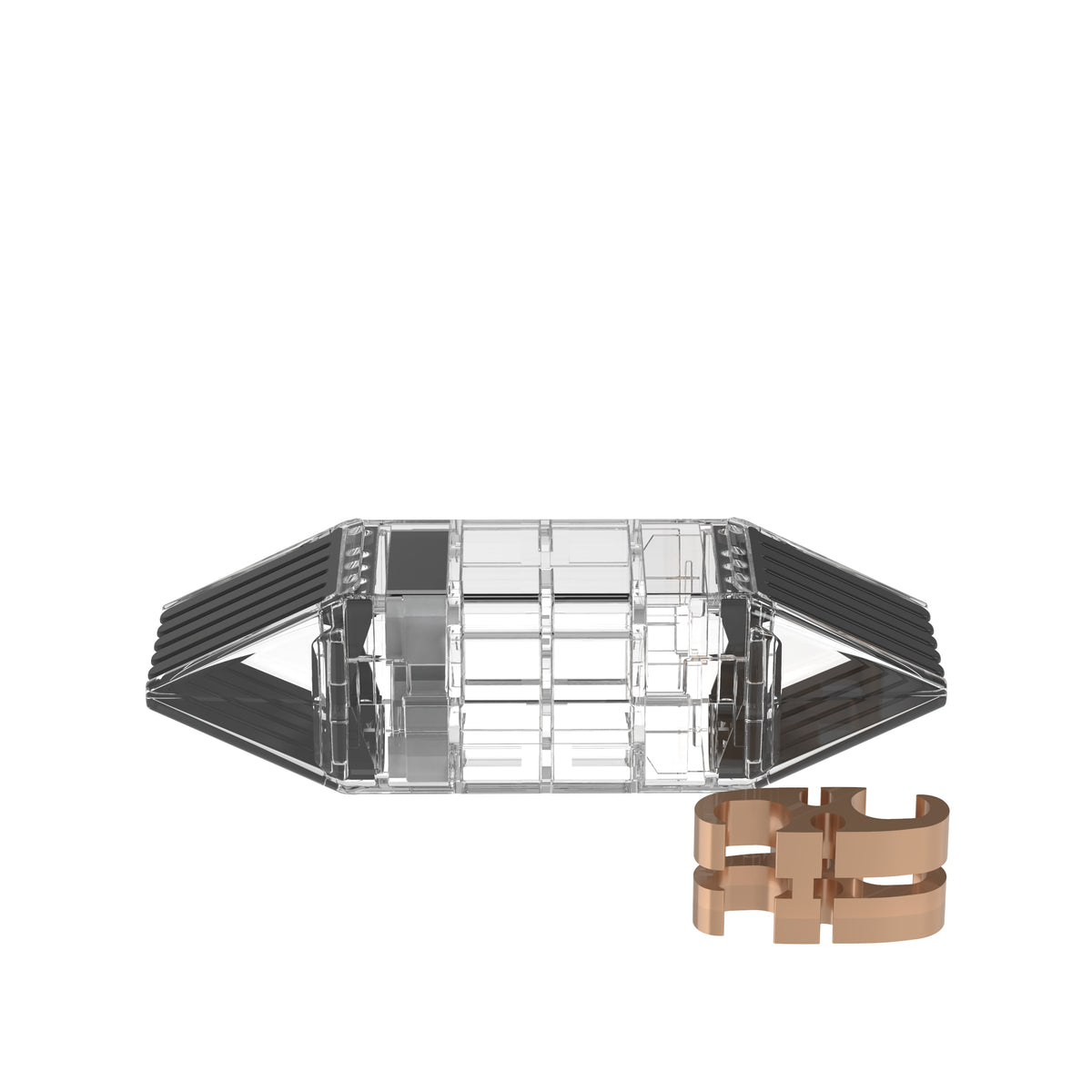

Panduit HTWC2-2-1 | HTAP kits
Regular price
$49.60
Unit price
Brand: Panduit
|
SKU:
HTWC2-2-1
Regular price
$49.60
Unit price
Description
Description
Panduit HTWC2-2-1 | HTAP kits
Kit contains HTCT2-2-1 HTAP and CLRCVR2-1 clear cover; terminates code #2 - #6 AWG STR/SOL Run and Tap 1 or flex #2 - #8 AWG Run and Tap 1, code or flex #8 - #14 AWG Tap 2 and Tap 3.
Panduit StructuredGround Code/Flex Conductor Kit, Type HTWC, Specifications: 6 AWG Solid to 2 AWG Stranded Conductor/Tap, 13/16 in L Wire Strip, 2 to 6 A, 600 VAC, For Use With: HTCT2-2-1 Copper Compression H-TAP, Brown
Panduit - HTWC2-2-1 - Features
- Include all components to make a complete HTAP and cover installation HTCT H-tap matching CLRCVR clear cover and cable ties
- Each HTCT HTAP designed to terminate a wide range of copper code and flex conductor combinations to accommodate a variety of applications
- HTAPs incorporate a unique slotted design that allows for quick and easy installation using supplied Panduit cable ties, saves time and cost
- Matching clear covers are made from high impact plastic and provide high impact strength and 360 deg viewing of installed HTAP
- Clear oxygen index of 28 providing self-extinguishing, flame-retardant properties
- UL listed and CSA certified for applications up to 600 VAC when crimped with Panduit and specified competitor crimping tools and Panduit crimping dies
- Include all components to make a complete HTAP and cover installation: HTCT HTAP, matching CLRCVR clear cover, and cable ties
- Each HTCT HTAP designed to terminate a wide range of copper code and flex conductor combinations to accommodate a variety of applications
- HTAPs incorporate a unique slotted design that allows for quick and easy installation using supplied Panduit cable ties; saves time and cost
- Matching clear covers are made from high impact plastic and provide high impact strength and 360 viewing of installed HTAP
- Clear covers have a UL 94 V-0 flame rating and an oxygen index of 28 providing self-extinguishing, flame retardant properties
- UL Listed and CSA Certified for applications up to 600 V when crimped with Panduit and specified competitor crimping tools and Panduit crimping dies
- Specification Description
- Code/Flex Conductor HTAP Kit
- Copper Conductor Size Run: 6-2 AWG Stranded/Solid
- Copper Conductor Size Tap: 6-2 AWG Stranded/Solid
- Figure Number: 3
- Panduit Color Code: Brown
- Panduit Die Index Number: PH2
- Tap 2: 14-8 AWG
- Tap 3: 14-8 AWG
- Tap Cover: CLRCVR2-1
- Use With HTAP Part Number: HTCT2-2-1
- Wire Strip Length: 13/16 Inch (21 mm)
Specifications
Specifications
Panduit - HTWC2-2-1 - Specifications
| Component | Compression Taps |
|---|---|
| Connection Type | Compression |
| Material Rating | Copper |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Material | Copper |
| Surface Treatment | Tinned |
| Overall Length (In.) | 0.76 |
| Overall Length (mm) | 19.3 |
| Overall Width (In.) | 0.61 |
| Overall Width (mm) | 15.5 |
| Overall Height (In.) | 1.55 |
| Overall Height (mm) | 39.4 |
| Maximum Run Size (AWG SOL) | 6 |
| Maximum Run Size (AWG STR) | 6 |
| Minimum Run Size (AWG SOL) | 6 |
| Minimum Run Size (AWG STR) | 6 |
| Maximum Tap 1 Size (AWG) | 2 |
| Minimum Tap 1 Size (AWG) | 6 |
| Maximum Tap 2 Size (AWG) | 8 |
| Minimum Tap 2 Size (AWG) | 14 |
| Maximum Tap 3 Size (AWG) | 8 |
| Minimum Tap 3 Size (AWG) | 14 |
| Wire Strip Length (In.) | 13/16 |
| UPC | 07498342020 |
