Brand: Panduit
|
SKU:
HV965-C0

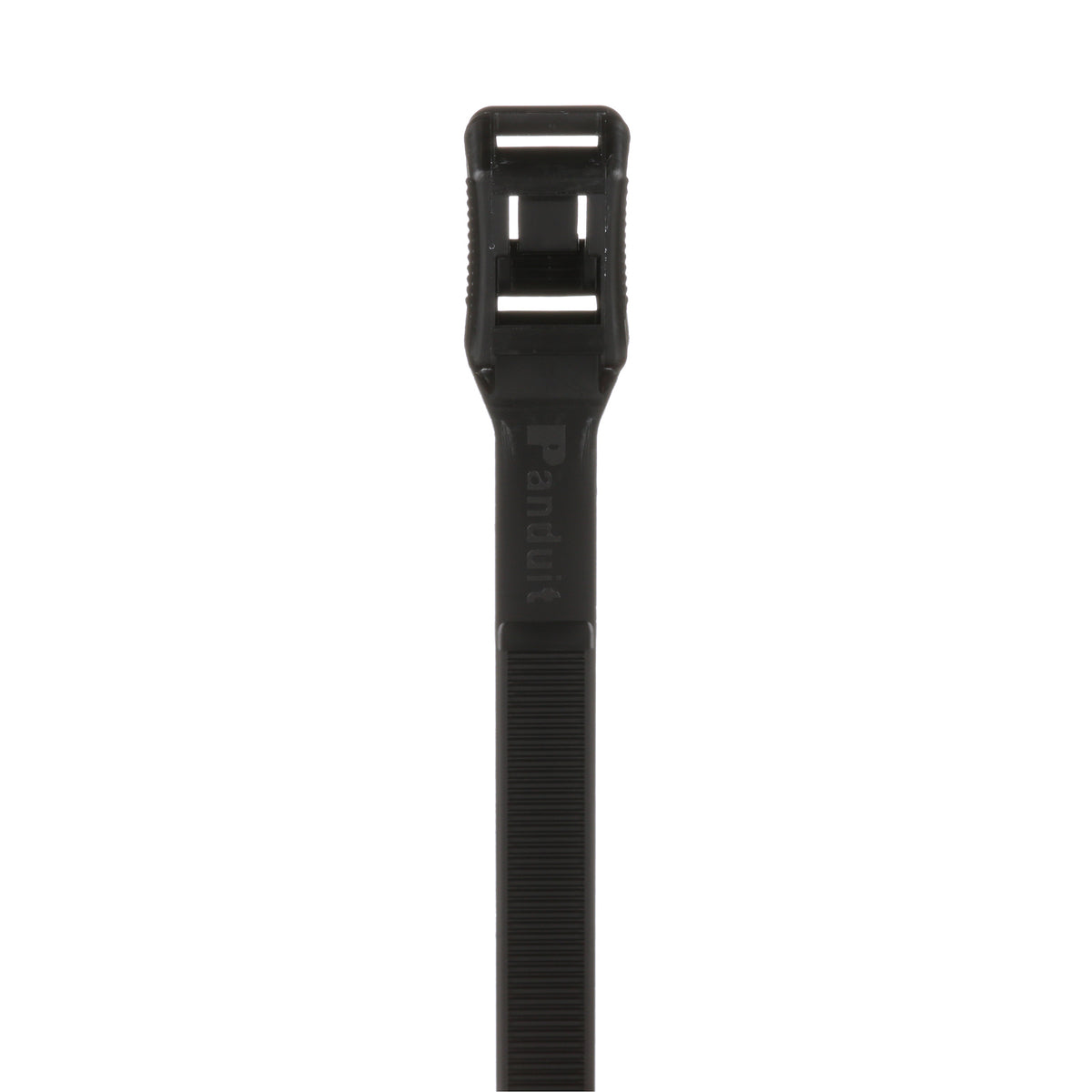

Panduit HV965-C0 | Hyper-V Hyper-V Cable Tie, Black, UV PA6.6, 10.4"L, 160lb, PK100
Regular price
$62.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HV965-C0 | Hyper-V Hyper-V Cable Tie, Black, UV PA6.6, 10.4...
Regular price
$62.66
Unit price
Description
Description
Panduit HV965-C0 | Hyper-V Hyper-V Cable Tie, Black, UV PA6.6, 10.4"L, 160lb, PK100
Strong and flexible, our cable tie adapts to any shape and locks firmly. Easily release and reposition it as needed. Weather-resistant and durable, ideal for outdoor or temporary use.
Panduit Hyper-V Cable Tie, Light Heavy, 10.4 in Length, 0.35 in Width, 0.08 in Thickness, 2.6 in Bundle Dia, Locking, 160 lb Tensile, -76 to 185 deg F, Nylon 6.6, Black
Panduit - HV965-C0 - Features
- Fixed and flexible 2-wedge locking design provides a low threading force
- Teeth on both sides of cable tie body provide additional locking strength and improved flexibility to conform to irregular bundle shapes such as securing cables to cable tray systems
- Releasable head position for temporary bundling of cables prior to final locking
- No need to replace ties when adding cables or wires to the bundle
- Teeth on full length of body support a wide range of bundle diameters
- Bending serrations on the tip of the tie allow the tip to be easily formed into an arc, enabling installer to fish the tie around the bundle in a confined space
- Threading hole in the tip of the tie allows an installer to hook the tip with a simple device to pull the tie through spaces with limited access
- In-line tie design for parallel entry of the tie into head resulting in a lower profile on cable bundles
- Weather-resistant
Specifications
Specifications
Panduit - HV965-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HV965-C0 |
| Product Type | Cable Tie |
| Sub Brand | Hyper-V |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 10.4 |
| Overall Length (mm) | 265 |
| Body Width (In.) | 0.35 |
| Body Width (mm) | 8.9 |
| Body Thickness (In.) | 0.076 |
| Body Thickness (mm) | 1.9 |
| Maximum Bundle Diameter (In.) | 2.56 |
| Maximum Bundle Diameter (mm) | 65 |
| Minimum Bundle Diameter (In.) | 0.39 |
| Minimum Bundle Diameter (mm) | 10 |
| Minimum Loop Tensile Strength (N) | 710 |
| Minimum Loop Tensile Strength (lb) | 160 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498378312 |
Panduit - HV965-C0 - Videos
| Panduit HV965-C0 Video 1 | Click to View |
|---|
