Brand: Panduit
|
SKU:
345597

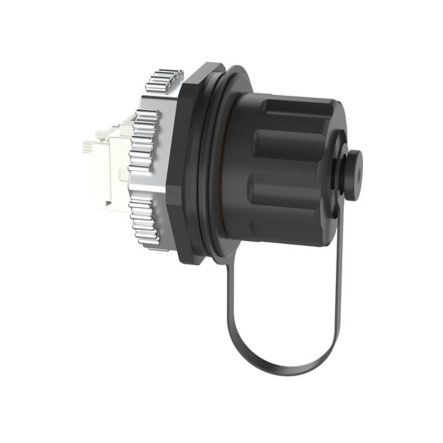

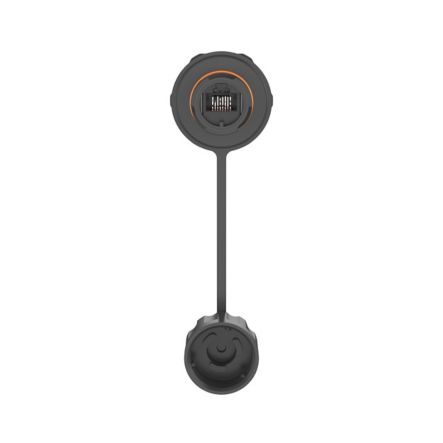

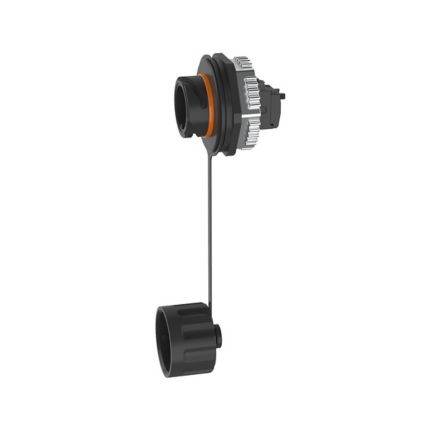

Panduit IAEBH5E Industrial Ethernet Connector, Category 5e UTP
Regular price
$47.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit IAEBH5E Industrial Ethernet Connector, Category 5e UTP
Regular price
$47.46
Unit price
Description
Description
Panduit IAEBH5E | Industrial Cat 5e RJ45 UTP Bulkhead Connector
The IndustrialNet Cat 5e UTP bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The UTP bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool.
Panduit - IAEBH5E - Features
- Category 5e, 8-position, 8-wire industrial connector with protective cover.
- Bulkhead provides IP67/IP65 seal when mated with IP67/IP65 plug or patch cord
- Exceed ANSI/TIA/EIA-568-C.2 Category 5e and ISO 11801 2nd Edition Class D standards
- Meet the industrial Ethernet specifications from ODVA, TIA, and IEC for sealed RJ45 connectors
- Utilize Panduit patented Giga-TX(TM) Termination technique for consistent, reliable terminations
- Terminate 4-pair 22 - 26 AWG solid and stranded twisted pair cable
- Gasket and seal made of inert, chemically resistant material
- High temperature rated material
- Tethered caps maintain seal during unmated connection
Specifications
Specifications
Panduit - IAEBH5E - Product Categories
- Copper Systems
- Industrial Copper Connectors
Panduit - IAEBH5E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | IAEBH5E |
| Item Description | Industrial Cat 5e RJ45 UTP Bulkhead Connector |
| Product Type | UTP Coupler Module |
| Color | Black |
| Connector 1 Type | RJ45 |
| Overall Width (In.) | 1.49 |
| Overall Width (mm) | 37.8 |
| Overall Depth (In.) | 1.67 |
| Overall Depth (mm) | 42.4 |
| Overall Height (In.) | 5.34 |
| Overall Height (mm) | 135.5 |
| Sub Brand | IndustrialNet |
| Standards Met | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO11801 Class D standards at swept frequencies 1 to 100 MHz, Meets all ODVA Ethernet/IP |
| electrical and mechanical performance requirements, Protects and seals connections against dust and water immersion to ANSI/IEC 60529-2004, Meets ANSI/TIA-1096-A, Rated IP67/68 for dust protection and temporary liquid immersion, Rated UL Type 12, 6/6P, 4X, RoHS compliant | Environment |
| Manufacturing | Connector 2 Type |
| Insulation Displacement | Conductor Gauge (AWG) |
| 26 | Performance Level |
| Category 5e | Termination Style |
Panduit - IAEBH5E - Package Information
| UPC | 07498381597 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0160 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.1604 |
