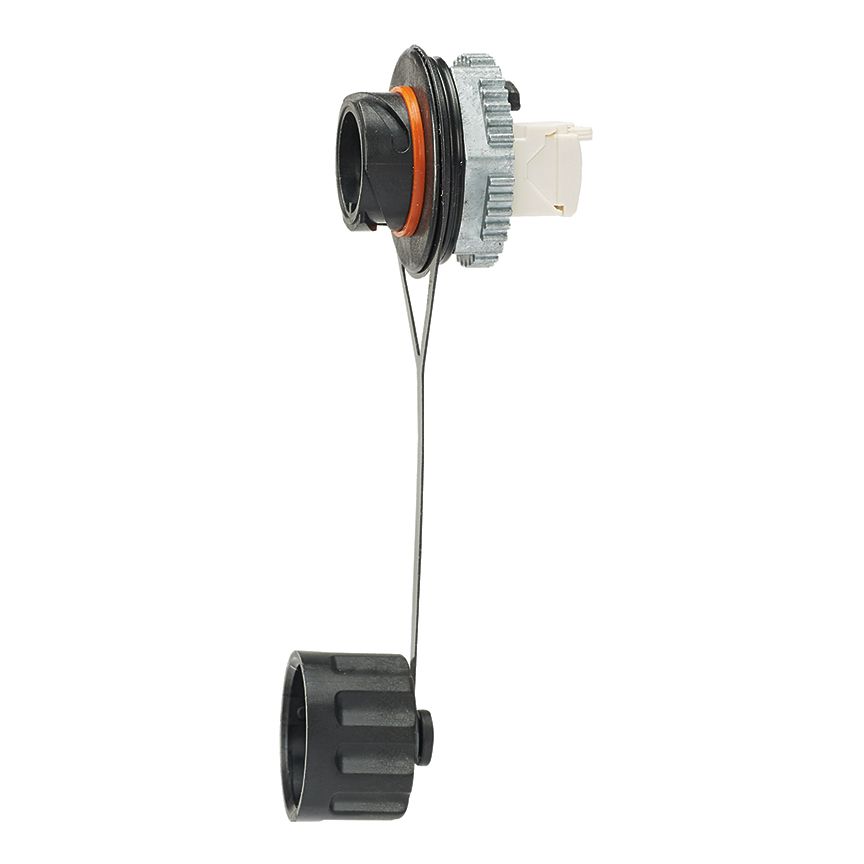

Panduit IAEBH6XS | Bulkhead Connector | UPC - 61305610867

The IndustrialNet Cat 6A shielded bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The shielded bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool.

---

Panduit IAEBH6XS Key Specs

Product Type	Bulkhead Connector
Performance Level	Category 6A
Connector Type	Bulkhead Connector
Termination Style	TG Style
Body Material	PBT/Plastic
Contact Material	Plated Phosphor Bronze
Module Type	Mini-Com
Wiring Scheme	T568A/T568B
Shield Type	Shielded (STP)
Sub Brand	IndustrialNet
Maximum Operating Temperature (°C)	70
Maximum Operating Temperature (°F)	158
Minimum Operating Temperature (°C)	-20
Minimum Operating Temperature (°F)	-4
Maximum Storage Temperature (°C)	70
Maximum Storage Temperature (°F)	158
Minimum Storage Temperature (°C)	-20
Minimum Storage Temperature (°F)	-4
Color	Black
Standards Met	Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Channel and Category 6A and ISO11801 Class EA Standards at Swept Frequencies 1 to 500 MHz, Plug Meets IEC 60603-7, Industrial Bulkhead Connection Protects and Seals Connections against Dust and Water Immersion to ANSI/IEC 60529-2004, Meets ANSI/TIA-1096-A, Bulkhead Connection Rated IP65/ P67, Bulkhead Connection Rated UL Type 12, Meets IEEE 802.3af and IEEE 802.3at for PoE Applications, and RoHS Complaint
Overall Depth (In.)	1.67
Overall Depth (mm)	42.3
Overall Height (In.)	5.37
Overall Height (mm)	136.4
Overall Length (In.)	5.37
Overall Length (mm)	136.4
Overall Width (In.)	1.55
Overall Width (mm)	39.4
