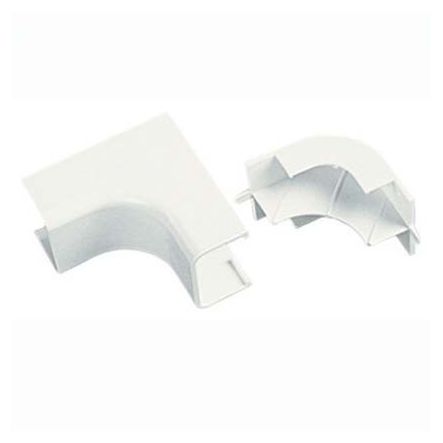

Panduit ICFX5WH-X LDS5, LDPH5 Power Rated Inside Corner Fitting, White, Pack of 10
Panduit ICFX5WH-X LDS5, LDPH5 Power Rated Inside Corner Fitting, White, Pack of 10

Panduit ICFX5WH-X LDS5, LDPH5 Power Rated Inside Corner Fitting, White, Pack of 10

Part Number: 261322
0 Review(s)
Write a Review
Availability:
$40.46
Retail Price:$44.29
Your Savings:$3.83(9%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Panduit ICFX5WH-X | Surface Raceway, LDPH5 Power Rated Inside Corner, White

The power rated inside corner fitting is used to efficiently run cables along an inside corner while maintaining a 1 inch bend radius. It is designed to be used with the LDPH5 raceway and features a snap-on installation. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is made of ABS plastic and is White.




https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Panduit - ICFX5WH-X - Product Categories

  • Wire Routing, Management & Protection
  • Single Channel Raceway



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Panduit - ICFX5WH-X - Specifications

Brand NamePanduit
Manufacturer Part NumberICFX5WH-X
Item DescriptionSurface Raceway, LDPH5 Power Rated Inside Corner, White
Product TypePower Rated Fittings
Sub BrandPan-Way
ColorWhite
Fitting TypeInside Corner
For Use WithLDPH5, LDS5
MaterialABS
Mount MethodSnap-On
Raceway TypePower Rated
Standards MetUl94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
Overall Height (In.)0.64
Overall Height (mm)16.1
Overall Length (In.)2.11
Overall Length (mm)53.6
Overall Width (In.)1.1
Overall Width (mm)28.1
ApplicationPan-Way LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes



https://www.alldataresource.com/assets/images_tripplite/package_includes.jpg

Panduit - ICFX5WH-X - Package Information

UPC07498352940
Standard Package Quantity10
Standard Package Volume (cf)0.1755
Standard. Ctn. Quantity0
Standard. Ctn. Volume (cf)0.0000



https://www.alldataresource.com/assets/icons/video.jpg

Panduit - ICFX5WH-X - Videos

Video 1Click to View



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Panduit - ICFX5WH-X - Documents and Downloads

Panduit ICFX5WH-X Specification SheetsClick to View
Panduit ICFX5WH-X Specification SheetsClick to View
Panduit ICFX5WH-X Specification SheetsClick to View
