Panduit JP2W-L20 | J Hook for Wall mount applications, One 1/4"...
Description
Description

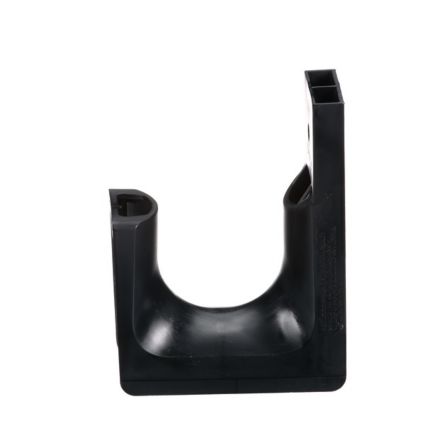

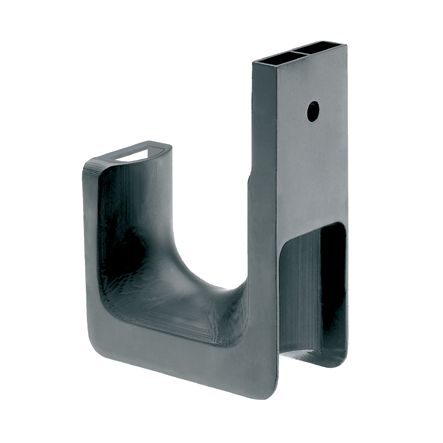

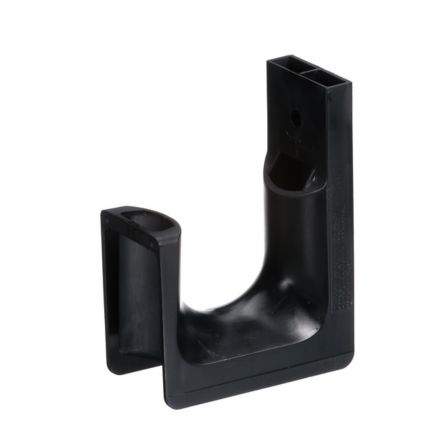

Panduit JP2W-L20 J-Hook for wall mount application have a patented design, featuring complete horizontal and vertical 1" bend radius control, which prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. Has one ¼" (M6) mounting hole for user and includes screw, 2.0" (50.8mm) max. bundle capacity. Made of Nylon 6.6, are black in color, and come in packages of 50.
Panduit - JP2W-L20 - Features
- Complete horizontal and vertical 1"; bend radius control helps prevent degradation of cable performance
- UL 2043 and CAN/ULC S102.2 listed and are suitable for use in air handling spaces
- Durable non-metallic J Hook materials provide the ability to manage
Specifications
Specifications
Panduit - JP2W-L20 - Product Categories
- Wire Routing, Management & Protection
- Cable & Conduit Hangers
Panduit - JP2W-L20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JP2W-L20 |
| Item Description | StrongHold JP2W-L20 J-Hook Cable System, Black, PA 6.6, Wall Mount, 2", PK50 |
| Application | Route High Performance Communication Cabling in Air Handling Spaces |
| Product Type | J-Pro Cable Support |
| Category 5e Cable Capacity | 55 |
| Category 6 Cable Capacity | 46 |
| Category 6A Cable Capacity | 30 |
| Color | Black |
| Material | Nylon 6.6 |
| Maximum J-Hook Bundle Capacity | 50.8 |
| Mount Method | Wall Mount |
| Overall Height (In.) | 4.7 |
| Overall Height (mm) | 119.4 |
| Overall Length (In.) | 3.5 |
| Overall Length (mm) | 88.9 |
| Overall Width (In.) | 3.5 |
| Overall Width (mm) | 88.9 |
| Standards Met | UL, cULus Listed, RoHS Compliant |
| Sub Brand | StrongHold |
| Static Load Capacity (kg) | 13.6 |
| Static Load Capacity (lb) | 30 |
| Support Type | J-PRO Pre-Assembled J-Hook System |
| Part Features | Bend Radius Control, Smooth Pulling Surface |
Panduit - JP2W-L20 - Package Information
| UPC | 07498357112 |
|---|---|
| Standard Pkg. Qty. | 50 |
| Standard Package Volume (cf) | 1.2851 |
| Standard Ctn. Qty. | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
