Brand: Panduit
|
SKU:
360665

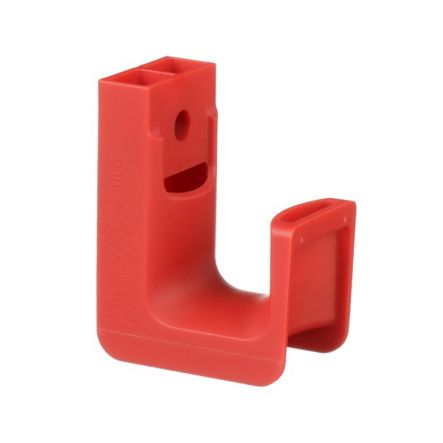

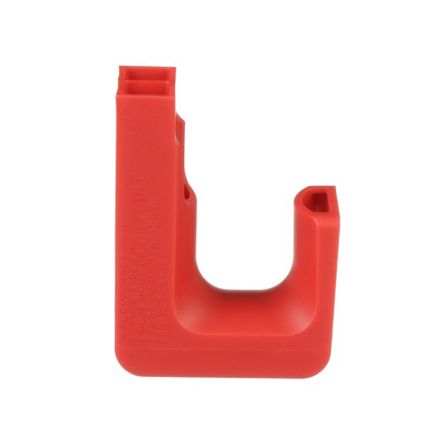

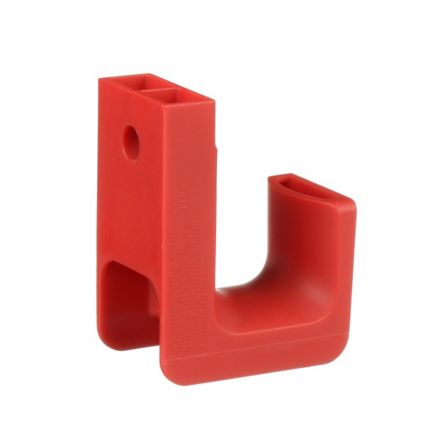

Panduit JP75DW-L2 | J-Pro Cable Support System Drop Wire And Threaded Rod Clip, Red, Maximum Bundle Capacity (In.) 0.75";
Regular price
$5.39
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit JP75DW-L2 | J-Pro Cable Support System Drop Wire And Thread...
Regular price
$5.39
Unit price
Brand: Panduit
|
SKU:
360665
Regular price
$5.39
Unit price
Description
Description
Panduit JP75DW-L2 | StrongHold JP75DW-L2 J-Pro Cable Support
J-PRO Cable support system, with clip for use with #12 wire and threaded rod up to 3/8 (9.5mm) in diameter or 1/8 - 1/4 (3.2mm - 6.4mm), 0.75 (19.0mm) max. bundle capacity, nylon 6.6 with metal attachments, red, 50 pc. package quantity.
Panduit - JP75DW-L2 - Features
- J Hook with clip for use with #12 wire, threaded rod up to 1/4"; (6.4mm) in diameter, or 1/8"; - 1/4"; (3.2mm - 6.4mm) thick flanges.
- Complete horizontal and vertical 1"; bend radius control helps prevent degradation of cable performance
- UL 2043 and CAN/ULC S102.2 listed and are suitable for use in air handling spaces
- Durable non-metallic J Hook materials provide the ability to manage and support a large number of cables
- Pre-riveted assemblies allow for attachment to ceilings, beams, threaded rods, drop wires and under floor supports to meet requirements of a variety of applications
- Wide cable support base prevents pinch points that could cause damage to cables
- Cable tie channel allows user to easily install 3/4"; Tak-Ty(TM) Cable Ties to retain cable bundle
Specifications
Specifications
Panduit - JP75DW-L2 - Product Categories
- Wire Routing, Management & Protection
- Cable & Conduit Hangers
Panduit - JP75DW-L2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JP75DW-L2 |
| Item Description | StrongHold JP75DW-L2 J-Pro Cable Support |
| Application | Route High Performance Communication Cabling in Air Handling Spaces |
| Product Type | J-Pro Cable Support |
| Category 5e Cable Capacity | 10 |
| Category 6 Cable Capacity | 8 |
| Category 6A Cable Capacity | 5 |
| Color | Red |
| For Use With | Wire and Rod |
| Includes | Clip |
| Material | Nylon 6.6/Metal |
| Maximum J-Hook Bundle Capacity | 19 |
| Mount Method | Drop Wire |
| Overall Height (In.) | 4.14 |
| Overall Height (mm) | 105.2 |
| Overall Length (In.) | 1.88 |
| Overall Length (mm) | 47.8 |
| Overall Width (In.) | 1.88 |
| Overall Width (mm) | 47.8 |
| Standards Met | UL, cULus Listed, RoHS Compliant |
| Sub Brand | StrongHold |
| Static Load Capacity (kg) | 4.5 |
| Static Load Capacity (lb) | 10 |
| Support Type | J-Pro J-Hook System |
Panduit - JP75DW-L2 - Package Information
| UPC | 07498301335 |
|---|---|
| Standard Pkg. Qty. | 50 |
| Standard Package Volume (cf) | 0.4062 |
| Standard Ctn. Qty. | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - JP75DW-L2 - Videos
| Video 1 | Click to View |
|---|
