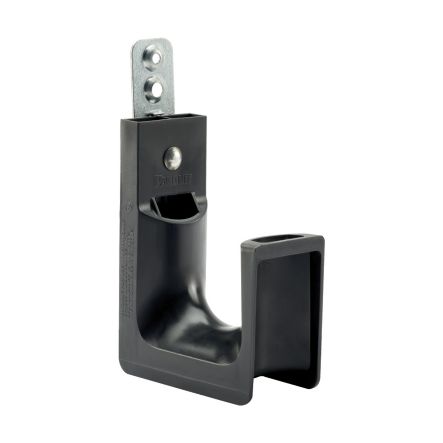

Panduit JP75DW-L20 | J-Pro Cable Support System Drop Wire And Threaded Rod Clip, Black, Maximum Bundle Capacity (In.) 0.75
Panduit JP75DW-L20 | J-Pro Cable Support System Drop Wire And Threaded Rod Clip, Black, Maximum Bundle Capacity (In.) 0.75';

Panduit JP75DW-L20 | J-Pro Cable Support System Drop Wire And Threaded Rod Clip, Black, Maximum Bundle Capacity (In.) 0.75";

Part Number: 324714
0 Review(s)
Write a Review
Availability:
$4.32
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Panduit JP75DW-L20 | StrongHold JP75DW-L20 J-Hook, 0.37", Black, PA 6.6/Metal, Drop Wire, .75", PK50

Panduit JP75DW-L20 J-Hook with Drop Wire and Rod Clip has a patented design, featuring complete horizontal and vertical 1" bend radius control, which prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with #12 wire and threaded rod up to 3/8" (9.5mm) in diameter or 1/8" – 1/4" (3.2mm-6.4mm), 0.75" (19.0mm) max. bundle capacity. Made of Nylon 6.6, are black in color, and come in packages of 50.




https://www.alldataresource.com/assets/images_commscope/features.jpg

Panduit - JP75DW-L20 - Features

  • Complete horizontal and vertical 1"; bend radius control helps prevent degradation of cable performance
  • UL 2043 and CAN/ULC S102.2 listed and are suitable for use in air handling spaces
  • Durable non-metallic J Hook materials provide the ability to manage and support a large number of cables
  • Pre-riveted assemblies allow for attachment to ceilings, beams, threaded rods, drop wires and under floor supports to meet requirements of a variety of applications
  • Wide cable support base prevents pinch points that could cause damage to cables
  • Cable tie channel allows user to easily install 3/4"; Tak-Ty(TM) Cable Ties to retain cable bundle



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Panduit - JP75DW-L20 - Product Categories

  • Wire Routing, Management & Protection
  • Cable & Conduit Hangers



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Panduit - JP75DW-L20 - Specifications

Brand NamePanduit
Manufacturer Part NumberJP75DW-L20
Item DescriptionStrongHold JP75DW-L20 J-Hook, 0.37", Black, PA 6.6/Metal, Drop Wire, .75", PK50
ApplicationRoute High Performance Communication Cabling in Air Handling Spaces
Product TypeJ-Pro Cable Support
Category 5e Cable Capacity10
Category 6 Cable Capacity8
Category 6A Cable Capacity5
ColorBlack
For Use WithWire and Rod
IncludesClip
MaterialNylon 6.6/Metal
Maximum Flange Thickness (In.)0.37
Maximum Flange Thickness (mm)9.5
Maximum J-Hook Bundle Capacity19
Mount MethodDrop Wire
Overall Height (In.)4.14
Overall Height (mm)105.2
Overall Length (In.)1.88
Overall Length (mm)47.8
Overall Width (In.)1.88
Overall Width (mm)47.8
Standards MetUL, cULus Listed, RoHS Compliant
Sub BrandStrongHold
Static Load Capacity (kg)4.5
Static Load Capacity (lb)10
Support TypeJ-PRO Pre-Assembled J-Hook System
Part FeaturesBend Radius Control, Smooth Pulling Surface



https://www.alldataresource.com/assets/images_tripplite/package_includes.jpg

Panduit - JP75DW-L20 - Package Information

UPC07498344022
Standard Pkg. Qty.50
Standard Package Volume (cf)0.3338
Standard Ctn. Qty.0
Standard Ctn. Volume (cf)0.0000



https://www.alldataresource.com/assets/icons/video.jpg

Panduit - JP75DW-L20 - Videos

Video 1Click to View



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Panduit - JP75DW-L20 - Documents and Downloads

Panduit JP75DW-L20 Catalog Cut SheetsClick to View
Panduit JP75DW-L20 Catalog Cut SheetsClick to View
Panduit JP75DW-L20 Product BulletinsClick to View
