Panduit MC50X100IG2 | Panduct MC50X100IG2 Narrow Slot Duct, Gray, P...
Description
Description

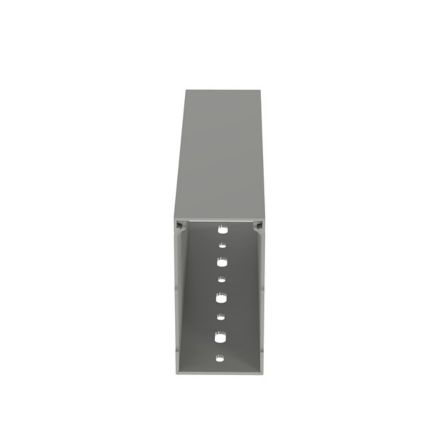

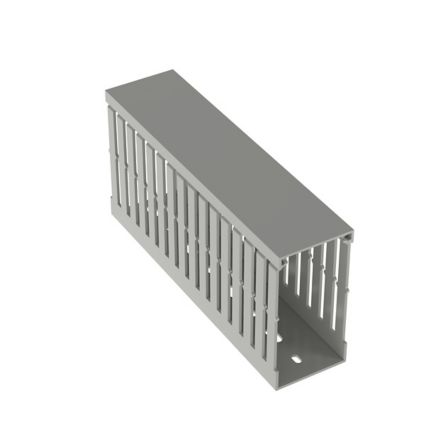

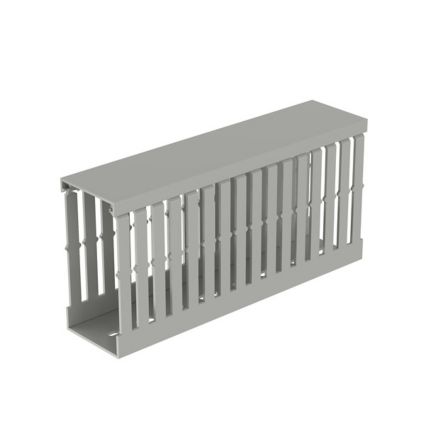

The MC50X100IG2 Panduct Lead-Free PVC Narrow Slot Wiring Duct is 49.5 mm x 97.8 mm (1.95" x 3.85"). It features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. Cover included. Color - International Gray. 10 Meters (5 sticks each) - Bases & Covers per package.
Panduit - MC50X100IG2 - Features
- Specifications
- CE compliant and metric sizing for control panels intended for European applications
- Made of lead-free PVC
- Rated for continuous use temperatures up to 122F (50C)
- UL94 Flammability Rating V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Available in International Gray color only
- Provided with DIN 43 659 mounting holes
- Duct and cover packaged together in 2 meter lengths
Specifications
Specifications
Panduit - MC50X100IG2 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - MC50X100IG2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MC50X100IG2 |
| Item Description | Panduct MC50X100IG2 Narrow Slot Duct, Gray, PVC, 3.85"x1.95", PK2 |
| Application | Narrow slot/finger design intended to provide more slots for high-density European applications |
| Product Type | Base/Cover |
| Color | International Gray |
| Cover Part Number | C50IG2 (included) |
| Flammability Rating | UL94V-0 |
| Includes | Base and Cover |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | Lead-Free PVC |
| Mount Method | DIN Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Metric Narrow Slot Wiring Duct |
| Wiring Duct Type | MC |
| Overall Height (In.) | 3.85 |
| Overall Height (mm) | 97.8 |
| Overall Length (ft.) | 6.6 |
| Overall Length (m) | 2 |
| Overall Width (In.) | 1.95 |
| Overall Width (mm) | 49.5 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
| Sub Brand | Panduct |
| Part Features | Metric PVC narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Base and Cover Packaged together. |
Panduit - MC50X100IG2 - Package Information
| UPC | 07498374298 |
|---|---|
| Standard Package Quantity | 2 |
| Standard Package Volume (cf) | 0.2809 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 1.4046 |
Panduit - MC50X100IG2 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
