Brand: Panduit
|
SKU:
327727

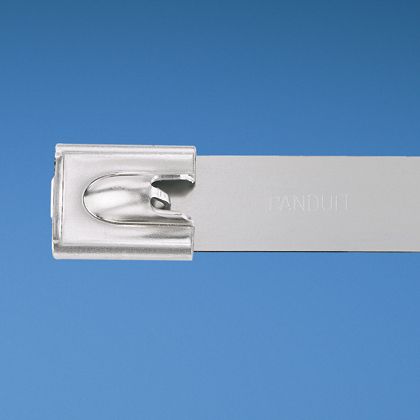

Panduit MLT4SH-LP | Pan-Steel MLT4SH-LP Cable Tie, SS 304, Natural, Super Heavy, 4" Dia., PK50
Regular price
$163.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit MLT4SH-LP | Pan-Steel MLT4SH-LP Cable Tie, SS 304, Natural,...
Regular price
$163.75
Unit price
Description
Description
Panduit MLT4SH-LP | Pan-Steel MLT4SH-LP Cable Tie, SS 304, Natural, Super Heavy, 4" Dia., PK50
Pan-Steel Self-locking Cable Ties speed up installation with a unique self-locking head design that locks into any part of the tie. Plus, the smooth edges of 304 stainless steel promote worker safety in indoor environments. Super-heavy cross section, Max bundle diameter: 4in, 17.1in, Tensile strength: 4005, 50pc.
Panduit - MLT4SH-LP - Features
- Self-locking head design speeds installation and locks into place at any length along the tie body
- Provides a strong, durable method of cable bundling
- Can be used in a wide range of indoor, outdoor, and underground (including direct burial) applications
- Smooth surfaces and rounded edges assures cable protection and worker safety
- Available in AISI 304 stainless steel for general-purpose applications
- Available in AISI 316 stainless steel for the most corrosive environments
- Applications: General
Specifications
Specifications
Panduit - MLT4SH-LP - Product Categories
- Hardware
- Hardware
- Hardware
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - MLT4SH-LP - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MLT4SH-LP |
| Item Description | Pan-Steel MLT4SH-LP Cable Tie, SS 304, Natural, Super Heavy, 4" Dia., PK50 |
| Product Type | Stainless Steel Cable Ties |
| Sub Brand | Pan-Steel |
| Color | Natural |
| Environment | Indoor/Outdoor |
| Material | Stainless Steel Type 304 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 17.1 |
| Overall Length (mm) | 434 |
| Body Width (In.) | 0.63 |
| Body Width (mm) | 16 |
| Body Thickness (In.) | 0.015 |
| Body Thickness (mm) | 0.38 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 1 |
| Minimum Bundle Diameter (mm) | 25.4 |
| Minimum Loop Tensile Strength (N) | 4005 |
| Minimum Loop Tensile Strength (lb) | 900 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| Standards Met | UL E56854,CE,ABS,GL,BV,LR,DNV |
| For Use With | RT2HT, RT2HTN, PBTMT |
| Application | General |
| Part Features | Self-locking head, 304 stainless steel, .63 wide |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
Panduit - MLT4SH-LP - Package Information
| UPC | 07498344610 |
|---|---|
| Std. Pkg. Qty. | 50 |
| Std. Pkg. Volume (cf) | 0.1351 |
| Std. Ctn. Qty. | 250 |
| Std. Ctn. Volume (cf) | 0.6754 |
Panduit - MLT4SH-LP - Videos
| Video 1 | Click to View |
|---|
