Panduit MLTFC2H-LP316GR | PanSteelTie, 316SS, POLY, H, 7.9, GRN, P50
Regular price
$199.63
Unit price
Brand: Panduit
|
SKU:
423632
Regular price
$199.63
Unit price
Description
Description

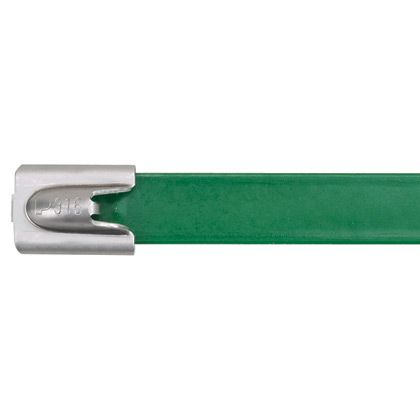

Panduit MLTFC2H-LP316GR | PanSteelTie,316SS,POLY,H,7.9,GRN,P50
Secure your toughest cable bundles with our corrosion-resistant, self-locking stainless steel cable tie. Featuring a quick-install design and protective coating, great for demanding environments.
Panduit Pan-Steel Cable Tie, Heavy Cross Section, Series: MLTFC Series, 7.9 in Length, 0.31 in Width, 0.01 in Thickness, 2 in Diameter Bundle, Lock Mechanism: Self-Locking, 250 lb Tensile Strength, -40 to 302 deg F, Polyester Coated 316 Stainless Steel, Green
Panduit - MLTFC2H-LP316GR - Features
- Cable ties speed up installation with a unique self-locking head design that locks into any part of the tie
- Polyester coating provides additional edge protection and prevents corrosion between dissimilar metals
- The 316 stainless steel is wrapped in UV-resistant, halogen free, low smoke polyester to promote worker safety and reliability in corrosive, high vibration, temperature extreme environments
Specifications
Specifications
Panduit - MLTFC2H-LP316GR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | MLTFC2H-LP316GR |
| Product Type | Cable Tie |
| Sub Brand | Pan-Steel |
| Color | Green |
| Environment | Harsh |
| Material | Stainless Steel Type 316 |
| Finish/Coating | Polyester Fully-Coated |
| Overall Length (In.) | 7.9 |
| Overall Length (mm) | 201 |
| Body Width (In.) | 0.31 |
| Body Width (mm) | 7.9 |
| Maximum Bundle Diameter (In.) | 2 |
| Minimum Loop Tensile Strength (N) | 1112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Installation Temperature (°C) | -40 |
| Minimum Installation Temperature (°F) | -40 |
| Part Features | Self-locking head, 316 base stainless steel, polyester coated, UV resistant, Halogen Free, 0.31 wide |
| UPC | 07498311785 |
Panduit - MLTFC2H-LP316GR - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 7326.90.8688 |
