Brand: Panduit
|
SKU:
282064

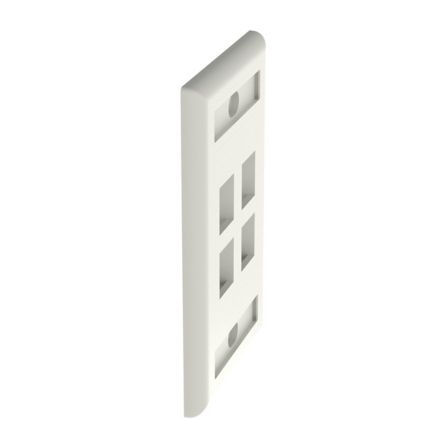

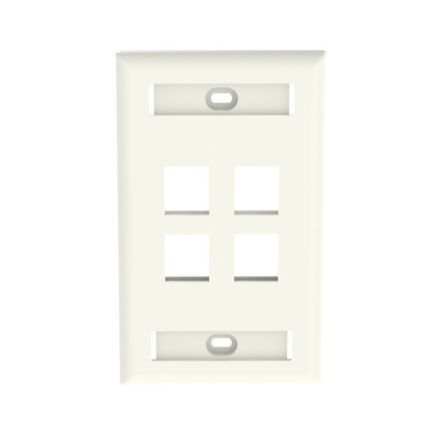

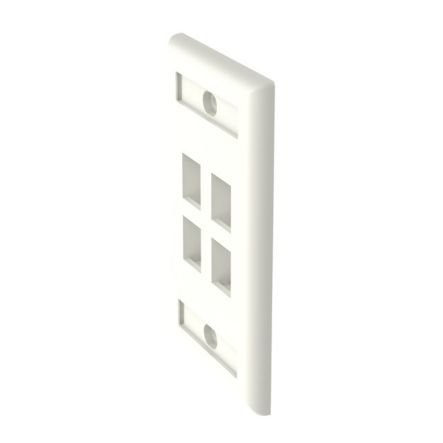

Panduit NK4FIWY | NK 4-Port, single gang, Flush Mount Vertical Faceplate With Labels, Off White
Regular price
$2.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit NK4FIWY | NK 4-Port, single gang, Flush Mount Vertical Face...
Regular price
$2.70
Unit price
Description
Description
Panduit NK4FIWY | NetKey Faceplate, Label Pocket, 4 Port, Off White
The NetKey Faceplate accepts four keystone modules. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate includes a label pocket for easy identification and is off white.
Panduit - NK4FIWY - Features
- Accepts all NetKey(TM) Modules
- Available in 1, 2, 4, and 6 module single gang and 12 module double gang styles
- Supplied with mounting screws, labels and clear label covers
- Optional screw covers can be used in place of labels and clear label covers
Specifications
Specifications
Panduit - NK4FIWY - Product Categories
- Copper Systems
- Faceplates & Adapters
Panduit - NK4FIWY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK4FIWY |
| Item Description | NetKey Faceplate, Label Pocket, 4 Port, Off White |
| Product Type | Faceplate |
| Number of Ports | 4 |
| Module Type | Keystone |
| Sub Brand | NetKey |
| Material | ABS |
| Color | Off White |
| Identification Type | Label Pocket |
| Outlet Orientation | Flat |
| Overall Width (In.) | 2.75 |
| Overall Width (mm) | 69.85 |
| Overall Depth (In.) | 0.45 |
| Overall Depth (mm) | 11.5 |
| Overall Height (In.) | 4.5 |
| Overall Height (mm) | 114.3 |
| Gang Opening Type | Single Gang |
| Mount Orientation | Vertical |
| Standards Met | RoHS Compliant |
Panduit - NK4FIWY - Package Information
| UPC | 07498305480 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0083 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.0832 |
