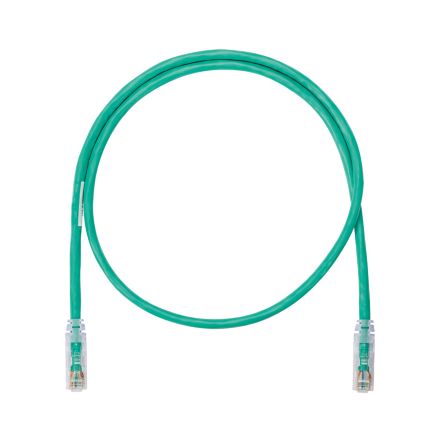

Panduit NK6APC12MGR | NetKey Patch Cord
Panduit NK6APC12MGR | NetKey Patch Cord

Panduit NK6APC12MGR | NetKey Patch Cord

Part Number: MM12M-NK6A-04
0 Review(s)
Write a Review
Availability:
$38.11
Retail Price:$40.26
Your Savings:$2.15(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Panduit NK6APC12MGR | NetKey Patch Cord

Netkey copper patch cord, category 6A, CM/LSZH, 12 meters, green UTP cable.

Panduit NK6APC12MGR Netkey Cat6A Patch Cord, CM/LSZH, Green, 12 meter




https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Panduit - NK6APC12MGR - Product Categories

  • Copper Systems
  • Patch Cords



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Panduit - NK6APC12MGR - Specifications

Brand NamePanduit
Manufacturer Part NumberNK6APC12MGR
Item DescriptionNetKey Patch Cord
Application(1) 10GBASE-T Ethernet (2) Wireless deployment (3) Power over Ethernet (4) Video streaming
Product TypePatch Cord
Conductor Gauge (AWG)26
Conductor Gauge (kcmil)0.2
Sub BrandNetKey
Performance LevelCategory 6A
Conductor TypeStranded
Cable ConstructionF/UTP
Patch Cord TypeShielded
Plug Housing MaterialPolycarbonate
Jacket MaterialLSZH Material
Connector 1 TypeModular Plug
Connector 2 TypeModular Plug
Overall Length (m)12
Nominal Cable Outside Diameter (mm)6.4
Wiring SchemeT568B
Maximum Operating Temperature (°C)60
Minimum Operating Temperature (°C)-10
Maximum Storage Temperature (°C)70
Boot ColorClear
ColorGreen
Flammability RatingDual Rated (CM/LSZH)
Standards MetExceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA channel requirements at swept frequencies up to 500 MHz, Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6A component requirements at swept frequencies up to 500 MHz, Complies with ANSI/TIA-1096-A (formerly FCC Part 68); contacts plated with 50 microinches of gold for superior performance, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant
IEC Variant60603-7
PoE CompatibilityPoE
Plug Type8 Position
RapidID EnabledNo
Part Features100% performance tested for wiremap, NEXT, and return loss, Integral pair manager, Patented tangle free latch, Slender strain relief boot with a variety of colors and lengths available.



https://www.alldataresource.com/assets/images_tripplite/package_includes.jpg

Panduit - NK6APC12MGR - Package Information

UPC07498396328
Standard Package Quantity1
Standard Package Volume (cf)0.0974
Standard Ctn. Quantity10
Standard Ctn. Volume (cf)0.9740



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Panduit - NK6APC12MGR - Documents and Downloads

Panduit NK6APC12MGR Specification SheetsClick to View
Panduit NK6APC12MGR Data SheetsClick to View
Panduit NK6APC12MGR Part DrawingsClick to View
Panduit NK6APC12MGR Brochures Non ProductClick to View
