Brand: Panduit
|
SKU:
131149
Panduit OCF3IW-E | Surface Raceway, LD3 Low Volt. O/S Cnr Fitting, Off-White
Regular price
$40.87
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit OCF3IW-E | Surface Raceway, LD3 Low Volt. O/S Cnr Fitting, ...
Regular price
$40.87
Unit price
Description
Description

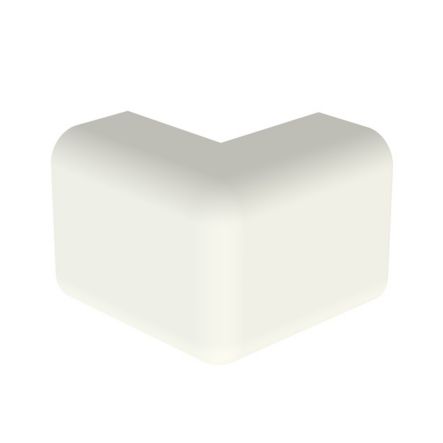

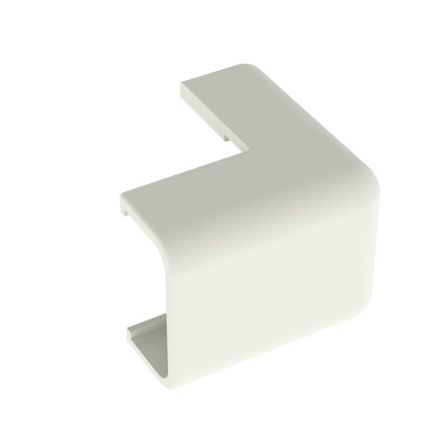

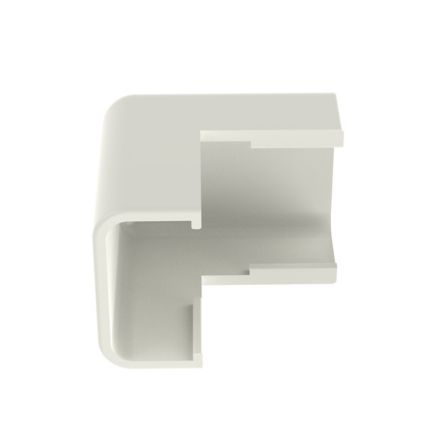

Panduit OCF3IW-E | Surface Raceway, LD3 Low Volt. O/S Cnr Fitting, Off-White
The outside corner fitting is a Surface Raceway fitting designed to transition your raceway around an outside corner while maintaining a 1 inch bend radius. It is designed to be used with the LD3 raceway and features a snap-on installation. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is Off-White.
Specifications
Specifications
Panduit - OCF3IW-E - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - OCF3IW-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | OCF3IW-E |
| Item Description | Surface Raceway, LD3 Low Volt. O/S Cnr Fitting, Off-White |
| Product Type | Low Voltage Fittings |
| Sub Brand | Pan-Way |
| Fitting Type | Outside Corner |
| For Use With | LD3 |
| Material | Rigid PVC |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Overall Height (In.) | 0.44 |
| Overall Height (mm) | 11.2 |
| Overall Length (In.) | 1.05 |
| Overall Length (mm) | 26.7 |
| Overall Width (In.) | 1.05 |
| Overall Width (mm) | 26.7 |
| Application | Pan-Way Lds Profile Raceway is a Single Channel Non-Hinged Raceway Which Provides Solutions for Routing of Power or Low Voltage Data and Fiber Optic Cabling Along Perimeter Walls. Lds Raceway is the Only Non-Metallic Raceway that is Bendable in Low Volt |
Panduit - OCF3IW-E - Package Information
| UPC | 07498326261 |
|---|---|
| Standard Package Quantity | 20 |
| Standard Package Volume (cf) | 0.0307 |
| Standard. Ctn. Quantity | 100 |
| Standard. Ctn. Volume (cf) | 0.1537 |
