Panduit OCFX3WH-X | Surface Raceway, LDPH3 Power Rated Outside Corn...
Regular price
$49.60
Unit price
Brand: Panduit
|
SKU:
166067
Regular price
$49.60
Unit price
Description
Description

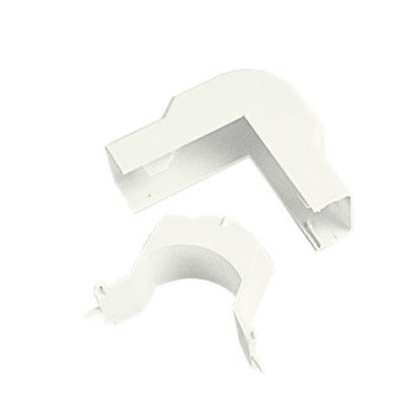

Panduit OCFX3WH-X | Surface Raceway, LDPH3 Power Rated Outside Corner, White
Transform your space with our outside power rated corner fitting. Ensure seamless cable management around corners.
Outside corner fitting for use with LDPH3 and LDS3 raceway, White, ABS, Length 2.56 in.
Panduit Pan-Way Outside Corner Fitting, Bend Radius Control Power Rated, Snap-On Mount, For Use With: Pan-Way LDPH3 and LDS3 Series Raceway, PVC, White, 2.56 in L x 2.56 in W x 0.87 in H
Panduit - OCFX3WH-X - Features
- Designed to provide solutions for routing of power or low voltage data and fiber optic cabling along perimeter walls
- Multi-channel system allows end user to purchase one raceway to route both data and power cabling
- 1-piece hinged design cables can be laid into the raceway, which prevents damage to cables during installation
- Adhesive backing for temporary mounting installations are easier and faster, reducing the total installed cost
- Highly tamper-resistant provides maximum security for communication cabling and maximum safety for power cabling
- One inch bend radius fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - OCFX3WH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | OCFX3WH-X |
| Color | White |
| Components | Fittings |
| Type | Non-Metallic |
| UNSPSC Code | 39131709 |
| Product Type | Power Rated Fitting |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Outside Corner |
| For Use With | LD3, LDPH3, LDS3 |
| Material | PVC |
| Material Properties | Rigid |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Length (In.) | 2.56 |
| Overall Length (mm) | 65 |
| Overall Width (In.) | 2.56 |
| Overall Width (mm) | 65 |
| Overall Height (In.) | 0.87 |
| Overall Height (mm) | 22.1 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
| UPC | 07498361471 |
Panduit - OCFX3WH-X - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.8510 |
Panduit - OCFX3WH-X - Videos
| Panduit OCFX3WH-X Video 1 | Click to View |
|---|
