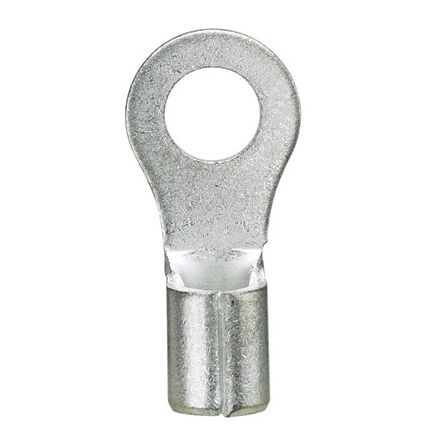

Panduit P10-10R-D | Pan-Term Ring Terminal, Bare, 10-14 AWG, #10 Stud, PK500
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P10-10R-D | Pan-Term Ring Terminal, Bare, 10-14 AWG, #10 St...
Description
Description
Simplify your electrical connections with our non-insulated ring terminal, featuring a secure ring tongue design for lasting performance in various wire sizes.
The P10-10R-D Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimping process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit Pan-Term Terminal, Type P-R, Solid/Stranded Conductor, 14 to 10 AWG Conductor, #10 Stud, 0.81 in Length, Brazed Seam/Serrated/Standard Barrel, 0.13 in ID x 0.22 in OD Barrel, Ring Tongue, 0.38 in W x 0.04 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.31 in Clearance, 302 deg F, Copper, Tin Plated, Silver
Panduit - P10-10R-D - Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - P10-10R-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P10-10R-D |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS20659-105) |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.22 |
| Outer Diameter (mm) | 5.6 |
| UPC | 07498380233 |
Panduit - P10-10R-D - Videos
| Panduit P10-10R-D Video 1 | Click to View |
|---|---|
| Panduit P10-10R-D Video 2 | Click to View |
