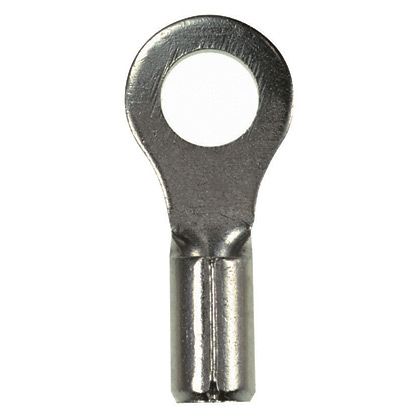

Panduit P10-14RHT6-D | Pan-Term P10-14RHT6-D Ring Terminal
High Temperature Ring Terminal, 12 – 10 AWG, 1/4" stud size, non-insulated, bulk package.
Panduit - P10-14RHT6-D - Features
- Nickel plated copper for temperatures up to 650F (343C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Technical Info: UL Listed 587H E52164; CSA Certified LR31212
Specifications
Specifications
Panduit - P10-14RHT6-D - Product Categories
- Communications
- Communications
- Communications
- Wire Termination
- Ring Terminals
Panduit - P10-14RHT6-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P10-14RHT6-D |
| Item Description | Pan-Term P10-14RHT6-D Ring Terminal |
| Stud Hole Size (In.) | 1/4" |
| Stud Hole Size (mm) | 6 |
| Stud Size | 1/4" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | cULus Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Nickel-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 343 |
| Maximum Operating Temperature (°F) | 650 |
| Outer Diameter (In.) | 0.22 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 5.59 |
| Inside Diameter (In.) | 0.13 |
| Inside Diameter (mm) | 3.3 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.96 |
| Overall Length (mm) | 24.38 |
| Overall Width (In.) | 0.53 |
| Overall Width (mm) | 13.46 |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1.02 |
| Tongue Width (In.) | 0.53 |
| Tongue Width (mm) | 13.46 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Nickel plated copper for temperatures up to 650°F (343°C) • Internal barrel serrations assure good wire contact and maximum tensile strength |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
Panduit - P10-14RHT6-D - Package Information
| UPC | 07498380554 |
|---|---|
| Std. Pkg. Qty. | 500 |
| Std. Pkg. Volume (cf) | 0.4314 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
