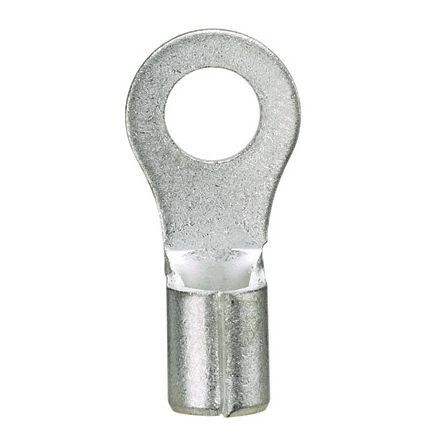

Panduit P10-8R-L | Pan-Term P10-8R-L Ring Terminal

Ring Terminal, 14 – 10 AWG, #8 stud size, non-insulated, standard package.

Panduit P10-8R-L Ring Terminal, 14 - 10 AWG, #8 stud size, non-insulated, pack of 50




https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Panduit - P10-8R-L - Product Categories

  • Wire Termination
  • Ring Terminals



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Panduit - P10-8R-L - Specifications

Brand NamePanduit
Manufacturer Part NumberP10-8R-L
Item DescriptionPan-Term P10-8R-L Ring Terminal
Stud Hole Size (In.)#8
Stud Hole Size (mm)4
Stud Size#8
Insulation MaterialNon-Insulated
Maximum Copper Conductor Size (AWG)#10
Maximum Wire Size (AWG)#10
Minimum Wire Size (AWG)#14
Minimum Copper Conductor Size (AWG)#14
Maximum Metric Conductor Size (mm²)6
Minimum Metric Conductor Size (mm²)2.5
Wire Strip Length (In.)9/32
Wire Strip Length (mm)7.1
Standards MetUL Listed 587H E52164, CSA Certified LR31212
Base MaterialCopper
Maximum Voltage (V)2000
Finish/CoatingTin-Plated
Barrel TypeStandard
Maximum Operating Temperature (°C)150
Maximum Operating Temperature (°F)302
Outer Diameter (In.)0.22
Seam TypeBrazed
Outer Diameter (mm)5.6
Inside Diameter (In.)0.13
Inside Diameter (mm)3.3
Sub BrandPan-Term
Overall Length (In.)0.78
Overall Length (mm)19.8
Overall Width (In.)0.31
Overall Width (mm)7.9
Tongue Thickness (In.)0.04
Tongue Thickness (mm)1
Tongue Width (In.)0.31
Tongue Width (mm)7.9
Packaging TypeBottle
Product TypeRing Terminal
For Use WithCT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570)
Part Features• Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength



https://www.alldataresource.com/assets/images_tripplite/package_includes.jpg

Panduit - P10-8R-L - Package Information

UPC07498380230
Standard Package Quantity50
Standard Package Volume (cf)0.0040
Standard Ctn. Quantity500
Standard Ctn. Volume (cf)0.0398



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Panduit - P10-8R-L - Documents and Downloads

Panduit P10-8R-L Part DrawingsClick to View
Panduit P10-8R-L Cross ReferencesClick to View
Panduit P10-8R-L Selection GuidesClick to View
Panduit P10-8R-L Selection GuidesClick to View
