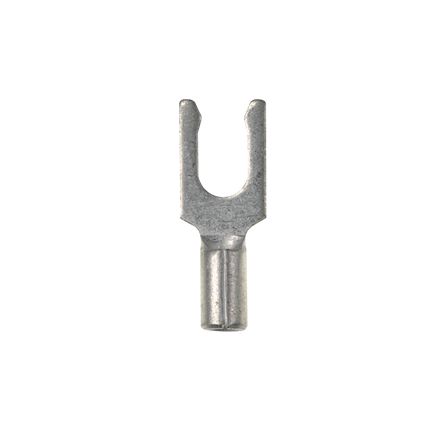

Panduit P14-8LF-M | Pan-Term P14-8Lf-M Loose Piece Forks
Panduit P14-8LF-M | Pan-Term P14-8Lf-M Loose Piece Forks

Panduit P14-8LF-M | Pan-Term P14-8Lf-M Loose Piece Forks

Part Number: PAN-P14-8LF-M
0 Review(s)
Write a Review
Availability:
$212.19
Retail Price:$223.08
Your Savings:$10.89(5%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Panduit P14-8LF-M | Pan-Term P14-8Lf-M Loose Piece Forks

Locking Fork Terminal, non-insulated, 18- 14 AWG, #8 stud size, bulk package.




https://www.alldataresource.com/assets/images_commscope/features.jpg

Panduit - P14-8LF-M - Features

  • Locks in place for secure connection
  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • UL and CSA rated up to 2000 V per UL 486
  • Maximum recommended operating temperature 302F (150C)



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Panduit - P14-8LF-M - Product Categories

  • Wire Termination
  • Fork Terminals



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Panduit - P14-8LF-M - Specifications

Brand NamePanduit
Manufacturer Part NumberP14-8LF-M
Item DescriptionPan-Term P14-8Lf-M Loose Piece Forks
Fork TypeLocking Fork
Insulation MaterialNon-Insulated
Insulation TypeNon-Insulated
Maximum Copper Conductor Size (AWG SOL)#14
Maximum Copper Conductor Size (AWG STR)#14
Maximum Copper Conductor Size (AWG)#14
Maximum Wire Size (AWG)#14
Minimum Wire Size (AWG)#18
Minimum Copper Conductor Size (AWG SOL)#18
Minimum Copper Conductor Size (AWG STR)#18
Minimum Copper Conductor Size (AWG)#18
Maximum Metric Conductor Size (mm²)2.5
Minimum Metric Conductor Size (mm²)1
Stud Size#8
Wire Strip Length (In.)9/32
Wire Strip Length (mm)7.1
Standards MetUL Listed 587H E52164; CSA Certified LR31212
Maximum Voltage (V)2000
Maximum Voltage (kV)2
Base MaterialCopper
Finish/CoatingTin-Plated
Color CodeMetallic
Barrel TypeStandard
Barrel Length (In.)0.27
Barrel Length (mm)6.7
Maximum Operating Temperature (°C)150
Maximum Operating Temperature (°F)302
Seam TypeBrazed
Outer Diameter (In.)0.16
Outer Diameter (mm)4.1
Stud Hole Size (In.)#8
Stud Hole Size (mm)4
Inside Diameter (In.)0.09
Inside Diameter (mm)2.3
Overall Length (In.)0.77
Overall Length (mm)19.6
Overall Width (In.)0.29
Overall Width (mm)7.4
Tongue Length (In.)0.51
Tongue Length (mm)12.8
Sub BrandPan-Term
Tongue Thickness (In.)0.03
Tongue Thickness (mm)0.8
Tongue Width (In.)0.29
Tongue Width (mm)7.4
Packaging TypeBox
Product TypeLocking Fork Terminal



https://www.alldataresource.com/assets/images_tripplite/package_includes.jpg

Panduit - P14-8LF-M - Package Information

UPC07498380909
Standard Package Quantity1000
Standard Package Volume (cf)0.4314
Standard Ctn. Quantity0
Standard Ctn. Volume (cf)0.0000



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Panduit - P14-8LF-M - Documents and Downloads

Panduit P14-8LF-M Part DrawingsClick to View
Panduit P14-8LF-M Selection GuidesClick to View
Panduit P14-8LF-M Selection GuidesClick to View
