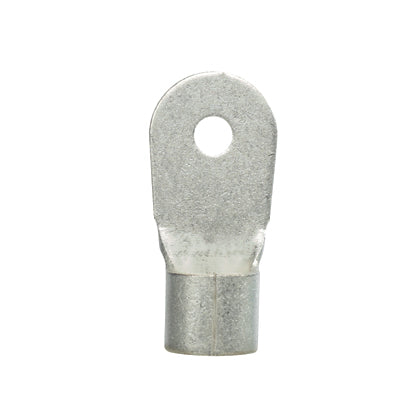

Panduit P4-14RHT6-E | Ring Terminal | UPC - 07498313014
Regular price
$49.60
Unit price
Brand: Panduit
|
SKU:
10044629
Regular price
$49.60
Unit price
Description
Description
Panduit Ring Terminal, Type P-RHT High Temperature Non-Insulated, Solid/Stranded Conductor, 4 AWG Conductor, 1/4 in Stud, 1.4 in Length, Brazed Seam/Internal Serration/Standard Barrel, 0.29 in ID x 0.39 in OD Barrel, Ring Tongue, 0.55 in W x 0.05 in THK Tongue, 2000 V, Specifications: 0.53 in Mounting Hole Size, 0.53 in Mounting Hole Size, Ring Shape Enclosure, 650 deg F, Copper, Nickel Plated, Metallic
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Panduit Panduit P4-14RHT6-E | Ring Terminal | UPC - 07498313014 Key Specs
| Stud Hole Size (In.) | 1/5 |
| Stud Hole Size (mm) | 5.1 |
| Stud Size | 1/4" |
| Insulation Material | Non-insulated |
| Maximum Copper Conductor Size (AWG SOL) | #4 |
| Maximum Copper Conductor Size (AWG STR) | #4 |
| Maximum Copper Conductor Size (AWG) | #4 |
| Maximum Wire Size (AWG) | #4 |
| Wire Strip Length (In.) | 0.53 |
| Wire Strip Length (mm) | 13.5 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Nickel-Plated |
| Color Code | Metallic |
| Barrel Length (mm) | 14.2 |
Panduit Panduit P4-14RHT6-E | Ring Terminal | UPC - 07498313014 Environmental Information
| Panduit's RoHS Statement | Download and View |
