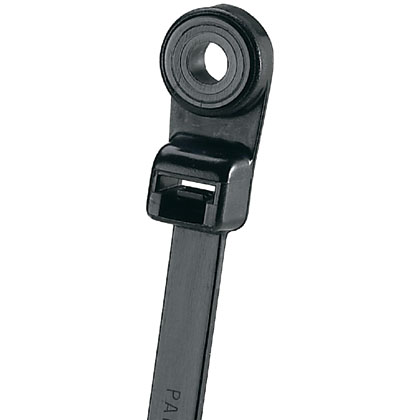

Panduit PLC1.5I-S8-M30 | Locking Clamp Ties | UPC - 07498355547
Regular price
$394.15
Unit price
Brand: Panduit
|
SKU:
1035317
Regular price
$394.15
Unit price
Description
Description
Panduit Pan-Ty Clamp Tie, Heat Stabilized Intermediate, Series: PLC, 6.1 in Length, 0.14 in Width, 0.05 in Thickness, 1-1/4 in Diameter Bundle, Lock Mechanism: Locking, 40 lb Tensile Strength, -76 to 239 deg F, Nylon 6.6, Black
Features + Benefits
- 1-piece construction for consistent performance and reliability
- Weather-resistant material has greater resistance to damage caused by UV light
- Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling
- Design allows for bundling before or after screwing clamp in place
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
Panduit PLC1.5I-S8-M30 | Locking Clamp Ties | UPC - 07498355547 Key Specs
| Application | To secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling |
| Product Type | Locking Clamp Ties |
| Color | Black |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Standards Met | CE Complaint; CSA Certified; UL 62275 Compliant (Type 1, 11); UL recognized |
| Screw Size | #8 (M4) |
| Maximum Bundle Diameter (In.) | 1.25 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Sub Brand | Pan-Ty |
| Maximum Bundle Diameter (mm) | 32 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 115 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°F) | -76 |
| Mounting Hole Width (In.) | 0.33 |
| Mounting Hole Width (mm) | 8.5 |
| Overall Length (In.) | 6.1 |
Panduit PLC1.5I-S8-M30 | Locking Clamp Ties | UPC - 07498355547 Data Sheets
| Catalog Cut Sheets | PLC1M-S4-C0 Product Page | Download and View |
| Part Drawings | PAN-TY Clamp Tie: SS-2724 | Download and View |
| Part Drawings | PLC1.5I-S8 - 3D stp Drawing | Download and View |
Panduit PLC1.5I-S8-M30 | Locking Clamp Ties | UPC - 07498355547 Environmental Information
| Panduit's RoHS Statement | Download and View |
