Description
Description
Fasten and identify bundles at the same time with our wire-on flag cable ties. Identify, label and document your assets for a quick, professional management process.
Panduit offers the most complete selection of cable tie styles, sizes, materials and colors to meet our customer's needs. Panduit cable ties bundle, mount and identify in countless indoor, outdoor and harsh environment applications. Panduit cable ties, wiring accessories and installation tools allow our customers to achieve the lowest total installed cost of managing wire and cable.

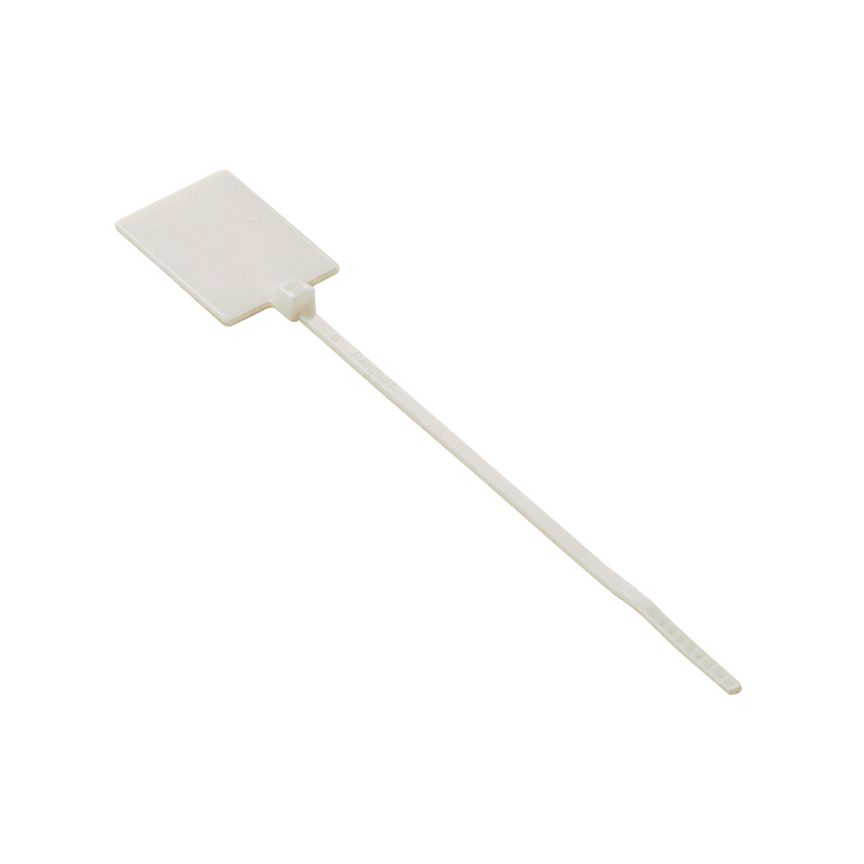

Panduit Pan-Ty Cable Tie, Flag Miniature, 5.1 in Length, 0.1 in Width, 0.05 in Thickness, 0.87 in Bundle Dia, Lock Mechanism: Locking, 18 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - PLF1MA-M - Features
- 1-piece locking wedge provides consistent, reliable performance
- Low threading force reduces operator fatigue and improves productivity
- High loop tensile strength exceeds industry standards
- Curved tip threads easily and installs faster
- Finger grip ensures positive grip during threading of tie
- Used to fasten and identify bundles at the same time, can be custom imprinted
Specifications
Specifications
Panduit - PLF1MA-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLF1MA-M |
| Write-On Area (In.) | 1.04W x 0.76H |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Marker Type | Flag |
| Overall Length (In.) | 5.1 |
| Overall Length (mm) | 130 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22.1 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498355315 |
Panduit - PLF1MA-M - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - PLF1MA-M - Videos
| Panduit PLF1MA-M Video 1 | Click to View |
|---|
