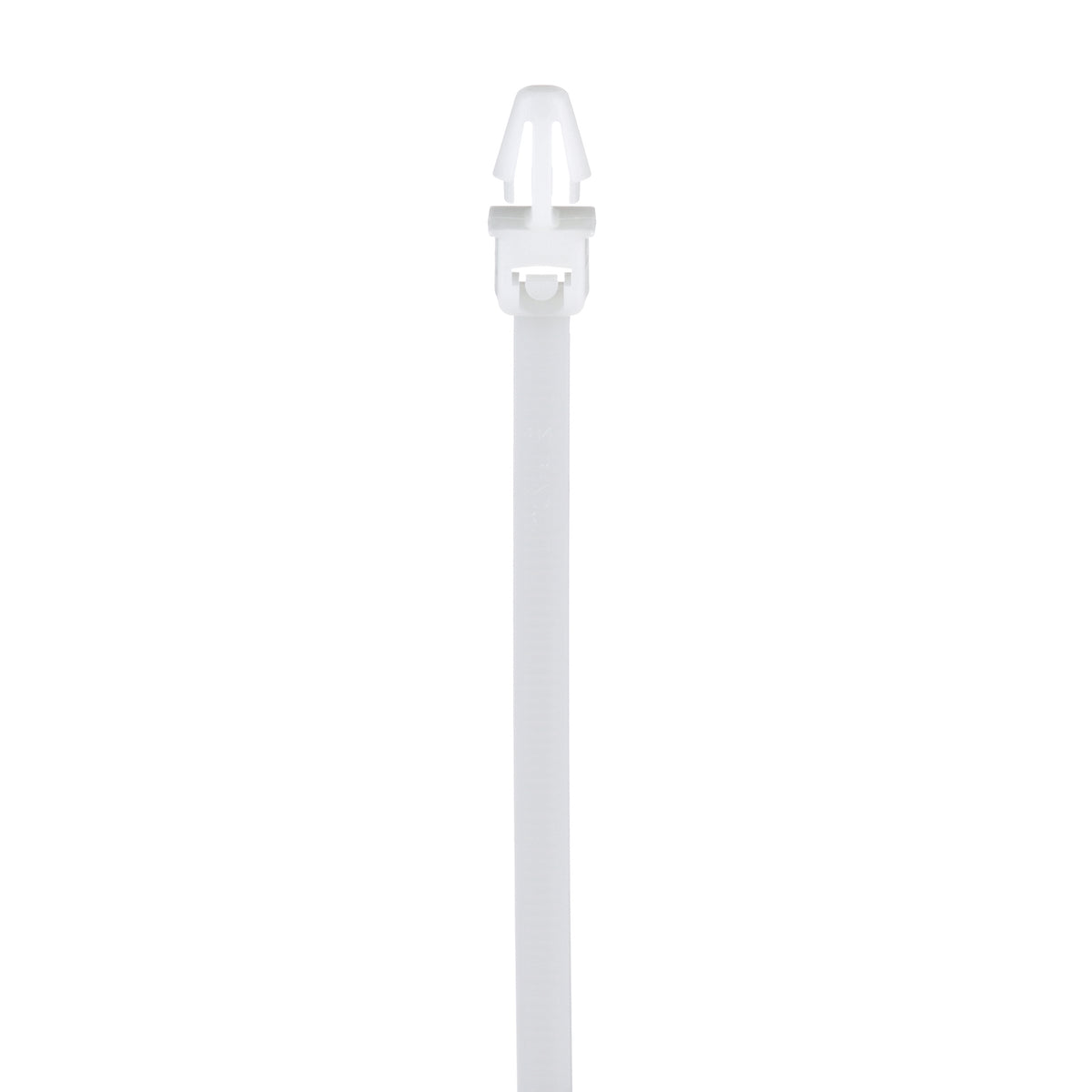

Panduit PLP1S-M | Cable Ties | UPC - 07498355503
Regular price
$260.65
Unit price
Brand: Panduit
|
SKU:
PLP1S-M
Regular price
$260.65
Unit price
Description
Description
Panduit Pan-Ty Cable Tie, Standard, Series: PLP, 5.3 in Length, 0.19 in Width, 0.05 in Thickness, 1 in Diameter Bundle, Lock Mechanism: Locking, 50 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Natural
Features + Benefits
- Weather-resistant material has greater resistance to damage caused by ultraviolet light
- Wingless design allows tie to be used in confined spaces
- Cable tie, mount and fastener in a single part
- Economical push mount ties are used to attach bundles to another surface such as a flat panel
- Anchor is easily pressed into a pre-formed hole and locks in place
Panduit PLP1S-M | Cable Ties | UPC - 07498355503 Key Specs
| Product Type | Cable Ties |
| Color | Natural |
| Environment | Indoor |
| Sub Brand | Pan-Ty |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 1 |
| Maximum Bundle Diameter (mm) | 25 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
Panduit PLP1S-M | Cable Ties | UPC - 07498355503 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PLP1.5I-C Product Page | Download and View |
| Part Drawings | Pan-Ty Push Mount Tie: SS-26803 | Download and View |
| Part Drawings | Industrial and Electrical Infrastructure (3D File) | Download and View |
Panduit PLP1S-M | Cable Ties | UPC - 07498355503 Environmental Information
| Panduit's RoHS Statement | Download and View |
